テラヘルツ波長板
A16394-02
テラヘルツ波の偏光が制御可能なフレネルロム波長板です。フレネルロムの採用により、広帯域対応が可能となりました。また、全反射プリズムをスタックすることで、大開口かつ小型化を実現しました。構成材料には、テラヘルツ波の透過率がよい高抵抗シリコンを使用しています。
特長
- テラヘルツ波の偏光制御用光学素子
- 出入射が同軸設計のフレネルロム波長板
- フラットな特性（代表値: 0.5 THz ～ 2.5 THz）
用途
- テラヘルツ波位相制御
- テラヘルツ偏光イメージング
- THz-STM (scanning tunnel microscope)
仕様
| 項目 | A16394-02 | A16394-04 |
|---|---|---|
| 位相遅延量 | λ/2 | λ/4 |
| 材質 | シリコン | |
| 有効開口 | φ20 mm | |
| 外形寸法 (D × L) | 50.8 × 50 mm | 50.8 × 31 mm |

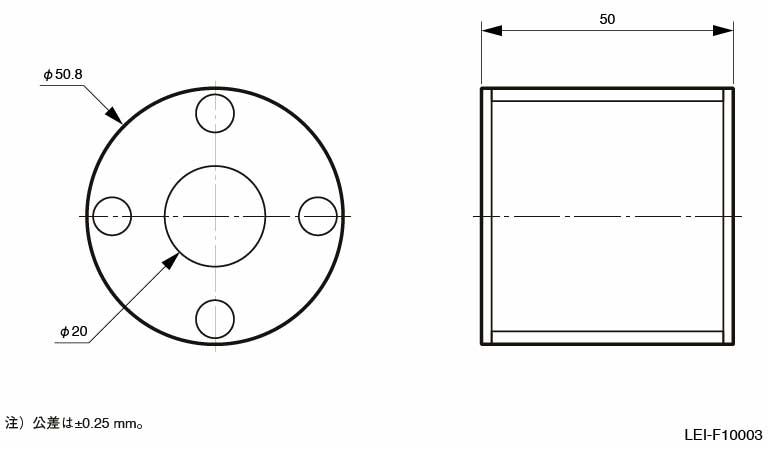

外形寸法図
