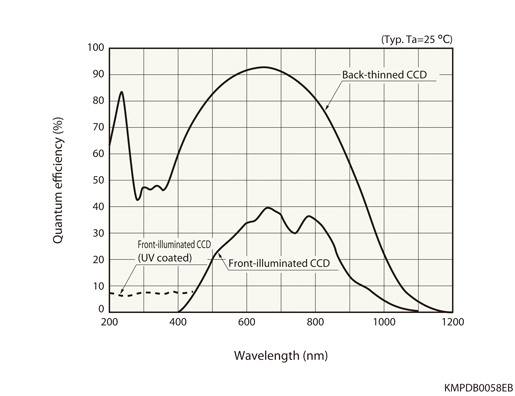

S7170-0909は、微弱光検出用に開発された計測用FFT-CCDエリアイメージセンサです。裏面入射型のため紫外～近赤外光に高い感度をもつ上、MPP (multi-pinned phase)モードで動作するため、低暗電流と広いダイナミックレンジを達成しています。さらに、分光感度特性も非常に安定しているため、高精度の測光が可能です。
|イメージサイズ||12.288 x 12.288 mm|
|有効画素数||512 x 512 pixels|
|画素サイズ||24 x 24 μm|
|暗電流 typ.||100 e-/pixel/s|
|読み出しノイズ typ.||8 e- rms|
|測定条件||指定のない場合はTyp. Ta=25 ℃, フレームレート: エリアスキャン時,暗電流: MPPモード|
