S11105は、ビデオデータレート 50 MHzを実現したCMOSリニアイメージセンサです。

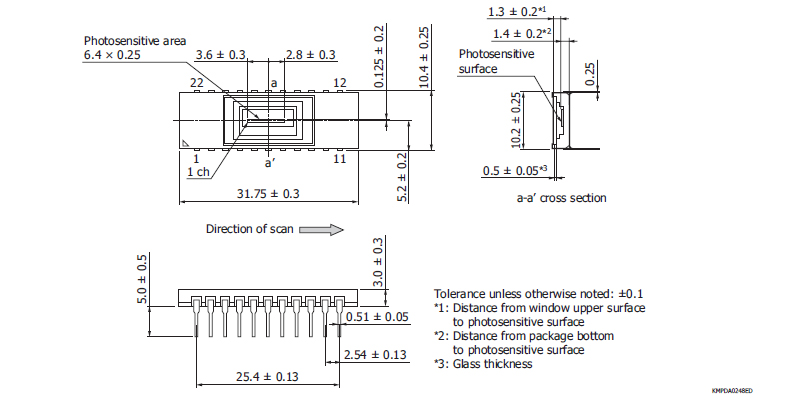

|イメージサイズ||6.4 x 0.25 mm|
|有効画素数||512 x 1 pixels|
|画素サイズ||12.5 x 250 μm|
|ラインレート max.||88495 ライン/s|
|測定条件||指定のない場合はTyp. Ta=25 ℃, Vdd=5 V, V(CLK)=V(ST)=5 V, f(CLK)=50 MHz|
