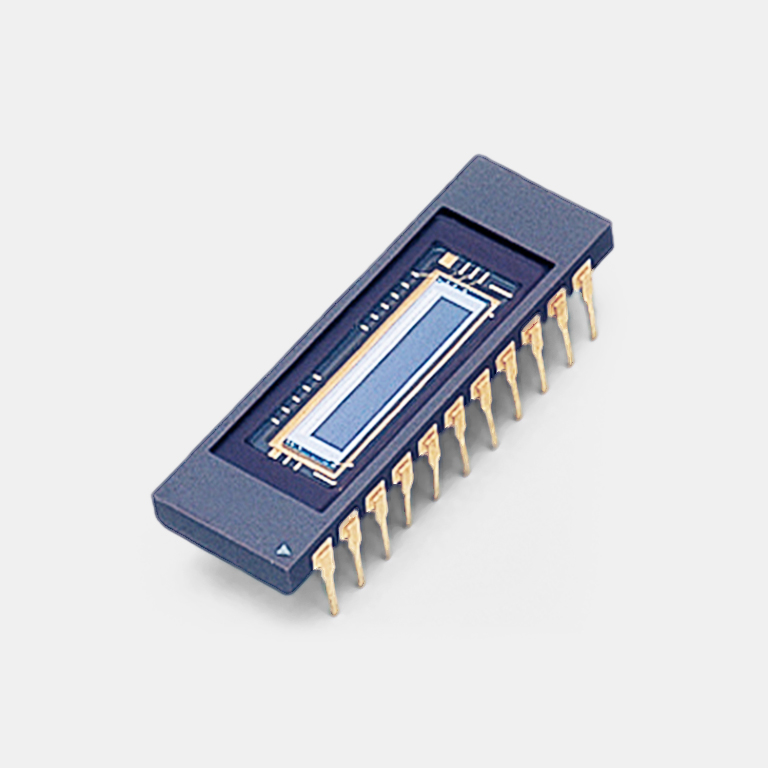

NMOSリニアイメージセンサは、マルチチャンネル分光光度計用の検出器として設計された自己走査型フォトダイオードアレイです。走査回路は、NチャンネルMOSトランジスタで構成され、低消費電力駆動が可能なため、取り扱いが容易です。各フォトダイオードの受光面積が大きく高い紫外感度をもつ上、雑音がきわめて小さいので微弱な入射光に対してもS/Nの高い信号が得られます。また、優れた出力直線性、広いダイナミックレンジも電流出力型のNMOSリニアイメージセンサの特長です。 S3904-256Qは25 μm × 2.5 mm のフォトダイオードが直線的に並んでいます。受光窓は、石英を標準品としています。
|イメージサイズ||6.4 x 2.5 mm|
|有効画素数||256 x 1 pixels|
|画素サイズ||25 x 2500 μm|
|ラインレート max.||7800 ライン/s|
|専用駆動回路||C7884, C7884G, C7884-01, C7884G-01, C8892|
|測定条件||指定のない場合はTyp. Ta=25 ℃
飽和電荷量: Vb=2.0 V, Vφ=5.0 V
