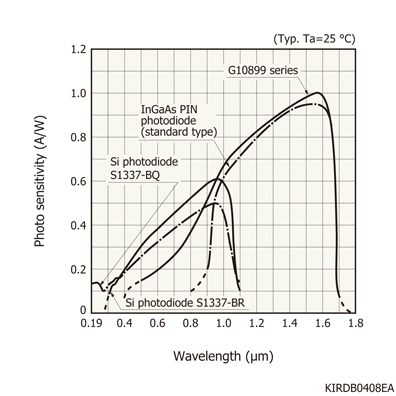

G10899-01Kは、0.5 μmから1.7 μmの広い感度波長範囲を実現したInGaAs PINフォトダイオードです。標準のInGaAs PINフォトダイオードの感度波長範囲が0.9～1.7 μmであるのに対して、G10899-01Kは0.5～1.7 μmと短波長側の感度波長範囲が広がっているため、1つの検出器で広い波長範囲の検出を行うことが可能です。なお、G10899-01Kは、低ノイズ・低暗電流という特長ももっています。
|最大感度波長 typ.||1.55 μm|
|受光感度 typ.||1 A/W|
|暗電流 max.||5 nA|
|遮断周波数 typ.||45 MHz|
|端子間容量 typ.||70 pF|
|雑音等価電力 typ.||2×10-14 W/Hz1/2|
|測定条件||指定のない場合はTyp. Ta=25 ℃, 受光感度: λ=λp, 暗電流: VR=1 V, 遮断周波数: VR=1 V, RL=50 Ω, 端子間容量: VR=1 V, f=1 MHz|
