本製品をご使用になる前に、以下の「使用上の注意 / 未封止製品」を必ずお読みください。
|受光面サイズ||30 × 3 mm|
|逆電圧 max.||100 V|

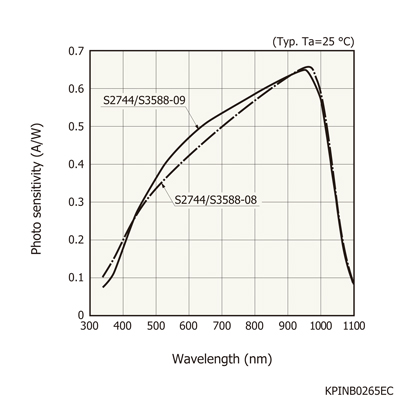

|最大感度波長 typ.||960 nm|
|受光感度 typ.||0.66 A/W|
|暗電流 max.||10000 pA|
|遮断周波数 typ.||40 MHz|
|端子間容量 typ.||40 pF|
|雑音等価電力 typ.||4.7×10-14 W/Hz1/2|
|測定条件||指定のない場合はTyp. Ta=25 ℃, 受光感度: λ=λp, 暗電流: VR=70 V, 遮断周波数: VR=70 V, 端子間容量: VR=70 V, f=1 MHz, 雑音等価電力: VR=70 V|
