Si PINフォトダイオード
S3584-08
| 受光面サイズ | 28 × 28 mm |
|---|---|
| 素子数 | 1 |
| パッケージ | セラミック |
| 冷却 | 非冷却 |
| 逆電圧 max. | 100 V |
| 感度波長範囲 | 340～1100 nm |
| 最大感度波長 typ. | 960 nm |
| 受光感度 typ. | 0.66 A/W |
| 暗電流 max. | 30000 pA |
| 遮断周波数 typ. | 10 MHz |
| 端子間容量 typ. | 300 pF |
| 雑音等価電力 typ. | 8.6×10-14 W/Hz1/2 |
| 測定条件 | 指定のない場合はTyp. Ta=25 ℃, 受光感度: λ=λp, 暗電流: VR=70 V, 遮断周波数: VR=70 V, 端子間容量: VR=70 V, f=1 MHz, 雑音等価電力: VR=70 V |

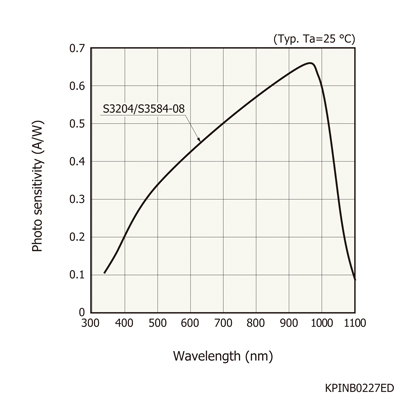

分光感度特性
外形寸法図 (単位: mm)
関連ドキュメント
