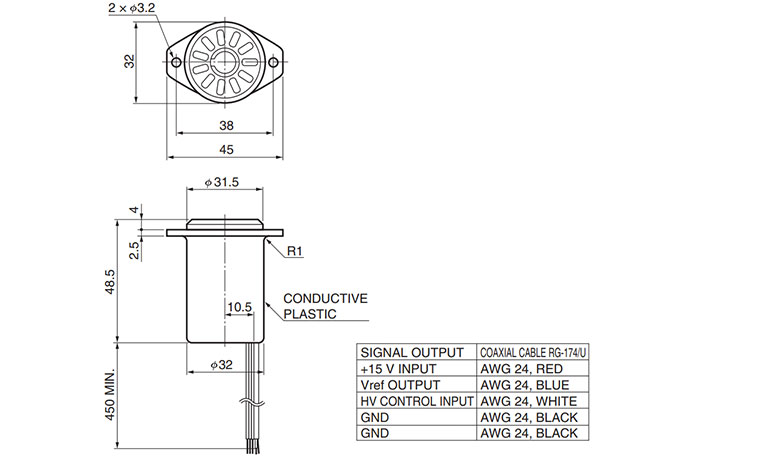

|適合PMT||28 mm サイドオン型|
|[PMT] 直線出力電流 Min.||43 (入力電圧 +15V, コントロール電圧 +4V, ±2% リニアリティ) μA|
|[高圧電源] 出力電圧範囲||0 ～ -1250 V|
|[高圧電源] 入力変動率（±1 V入力変動） Typ.||±0.01 %|
|[高圧電源] 出力電圧コントロール||コントロール電圧 (0V to +5V) または ポテンショメータ (50kΩ)|
|[高圧電源] コントロール電圧入力インピーダンス||100 kΩ|
|[高圧電源] 出力電圧応答 Typ.||80 ms|
|[高圧電源] 温度係数 Typ.||±0.01 %/℃|
|[アンプ] 周波数帯域 (-3 dB)||DC ～ 10 kHz|
|[アンプ] 電流電圧変換係数||0.3 （負荷抵抗 10 kΩ時） V/uA|
|[アンプ] 最大出力信号電圧||+13 （負荷抵抗 10 kΩ時） V|
|[アンプ] 信号出力オフセット電圧 Typ.||±0.3 mV|
|[アンプ] 信号出力リップル/ノイズ||1 mVp-p (Max.)|
|動作周囲温度||0 ～ +50 ℃|
|保存温度||-15 ～ +60 ℃|
|質量 Typ.||47 ｇ|
