入力電圧: +13.5 ～ +15.5 V, 出力電圧範囲: -200 ～ -1500 V
入力電圧: +11.5 ～ +15.5 V, 出力電圧範囲: -200 ～ -1200 V
入力電圧: +5 V±0.5 V, 出力電圧範囲: -200 V ～ -1200 V

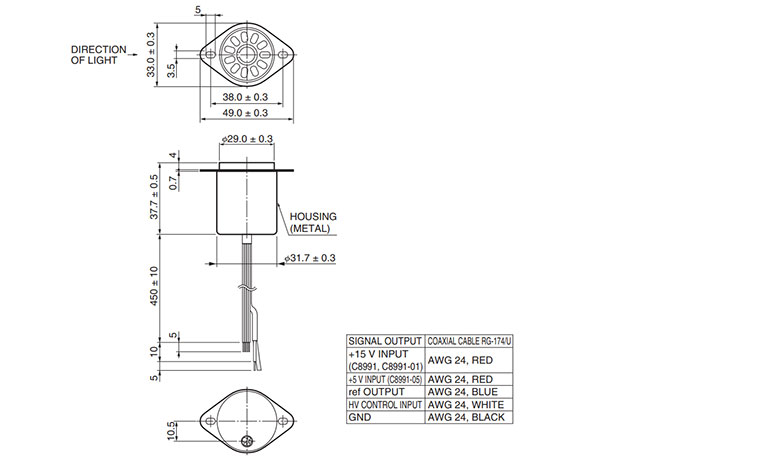

|適合PMT||28 mm サイドオン型|
|入力電圧||+13.5 ～ +15.5 V|
|[PMT] 直線出力電流 Min.||100 μA|
|[PMT] 出力信号 リップル/ノイズ Typ.||1.5 ｍVp-p|
|[高圧電源] 出力電圧範囲||0 ～ -1500 V|
|[高圧電源] 推奨出力電圧範囲||-200 ～ -1500 V|
|[高圧電源] 入力変動率（±1 V入力変動） Typ.||±0.01 %|
|[高圧電源] 出力電圧コントロール||0 V ～ +1.5 Vまたは10 kΩポテンショメータ|
|[高圧電源] セトリングタイム||10 s|
|[高圧電源] 温度係数 Typ.||±0.005 %/℃|
|動作周囲温度||0 ～ +50 ℃|
|保存温度||-15 ～ +60 ℃|
|質量 Typ.||59 ｇ|
