|感度波長 (Short)||300 nm|
|感度波長 (Long)||650 nm|
|感度波長 (Peak)||400 nm|

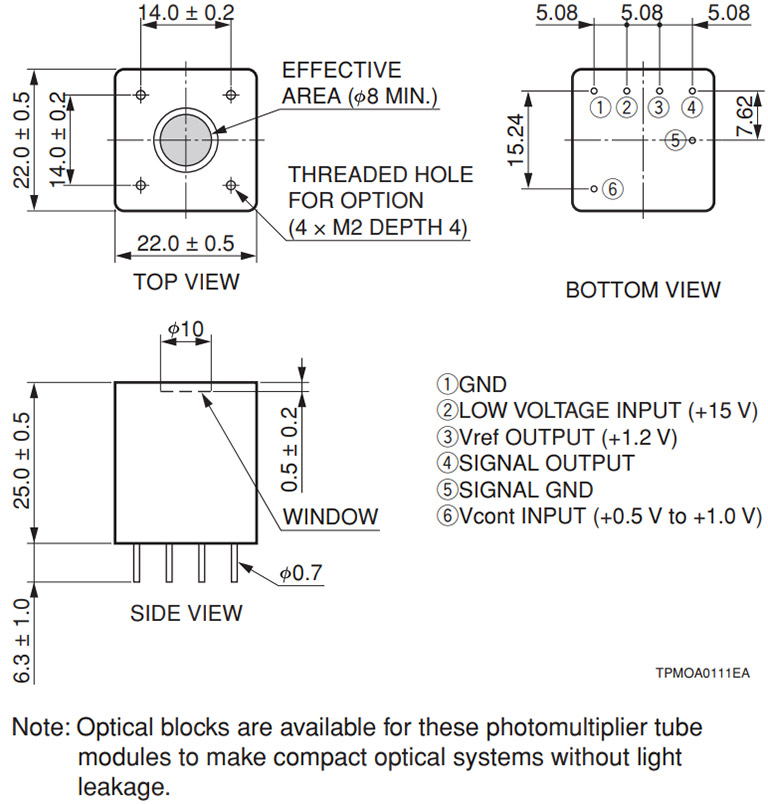

|外形寸法 (W x H x D)||22.0 mm x 22.0 mm x 25.0 mm|
|入力電圧||+11.5 V ～ +15.5 V|
|最大コントロール電圧||+1.0 V (入力インピーダンス 30 kΩ)|
|推奨コントロール電圧調整範囲||+0.5 V ～ +1.0 V (入力インピーダンス 30 kΩ)|
|[陰極特性] ルーメン感度 Min.||80 μA/lm|
|[陰極特性] ルーメン感度 Typ.||105 μA/lm|
|[陰極特性] 青感度指数 Typ.||13.5|
|[陰極特性] 放射感度 Typ.||110 mA/W|
|[陽極特性] ルーメン感度 Min.||30 A/lm|
|[陽極特性] ルーメン感度 Typ.||105 A/lm|
|[陽極特性] 放射感度 Typ.||1.1 x 105 A/W|
|[陽極特性] 暗電流(30分後) Typ.||0.5 nA|
|[陽極特性] 暗電流(30分後) Max.||5 nA|
|[時間特性] 上昇時間 (Tr) Typ.||0.6 ns|
|リップルノイズ （peak to peak） Max.||0.6 mV|
|セトリングタイム Max.||0.2 s|
|動作周囲温度||+5 ℃ ～ +50 ℃|
|保存温度||-20 ℃ ～ +50 ℃|
