光電子増倍管モジュール
H16200P-40
GaAsP光電面の光電子増倍管を使用した光電子増倍管モジュールです。最大出力電流40 μAで広いダイナミックレンジを実現し、コントラストに優れた鮮明な画像を提供するとともに、保護回路を必要としない安定した動作が可能です。
仕様
| 項目 | 内容／値 | 単位 | ||
|---|---|---|---|---|
| 入力電圧 | +11.5 ～ +15.5 | V | ||
| 最大入力電圧 | +18 | V | ||
| 最大入力電流 *1 | 12 | mA | ||
| 最大出力信号電流 | 40 | μA | ||
| 最大コントロール電圧 *2 | +0.9 | V | ||
| 推奨コントロール電圧調整範囲 *2 | +0.5 ～ +0.8 | V | ||
| 有効エリア | φ5 | mm | ||
| 感度波長範囲 | 300 ～ 740 | nm | ||
| 最大量子効率感度波長 | 520 | nm | ||
| [陰極特性] 量子効率 | 最大量子効率感度波長時 | 最小値 | 40 | % |
| 標準値 | 45 | % | ||
| [陰極特性] 放射感度 | 最大量子効率感度波長時 | 最小値 | 168 | mA/W |
| 標準値 | 189 | mA/W | ||
| [陽極特性] 放射感度 | 最大量子効率感度波長時 | 最小値 | 1.0 × 105 | A/W |
| 標準値 | 1.9 × 105 | A/W | ||
| [陽極特性] ダークカウント*4 *5 | 標準値 | 6000 | s-1 | |
| 最大値 | 18 000 | s-1 | ||
| [陽極特性] ゲイン*3 | 標準値 | 2.0 × 106 | - | |
| 上昇時間 *3 | 標準値 | 1.0 | ns | |
| リップル/ノイズ (peak to peak) *3 *6 | 最大値 | 0.6 | mV | |
| セトリングタイム *7 | 最大値 | 0.2 | s | |
| 動作周囲温度 *8 | +5 ～ +35 | ℃ | ||
| 保存温度 *8 | -20 ～ +50 | ℃ | ||
| 質量 | 76 | g | ||
Notes
*1 入力電圧 ±15 V、コントロール電圧 +0.8 V
*2 入力インピーダンス 30 kΩ
*3 コントロール電圧 +0.8 V
*4 暗中にて30分間放置後測定
*5 プラトー電圧＝コントロール電圧
*6 負荷抵抗 1 MΩ、負荷容量 22 pF
*7 コントロール電圧を+0.8 Vから+0.5 Vへ変化させたときの安定時間
*8 結露なきこと

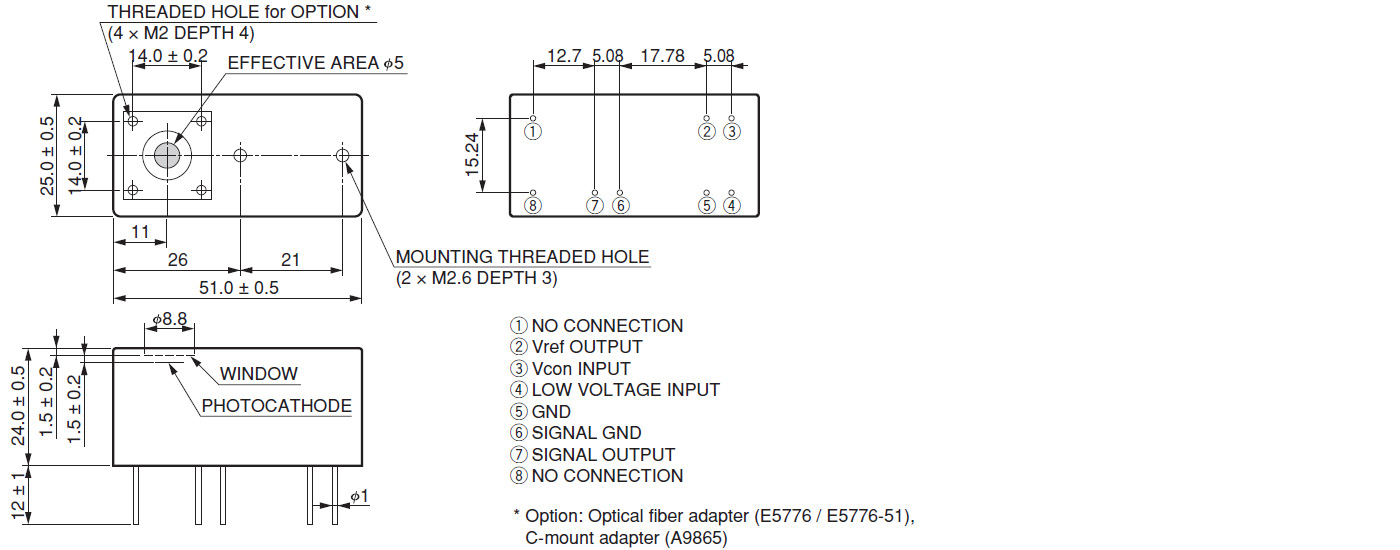

外形寸法図 (単位: mm)
