フォトンカウンティングヘッド
H7828-01
H7828シリーズは、φ19 mm (3/4")ヘッドオン型光電子増倍管と高速フォトンカウンティング回路、高圧電源回路を内蔵した小型フォトンカウンティングヘッドです。光電子増倍管の高電圧やディスクリミネータの設定はすでに調整してありますので、+5 Vを入力するだけでフォトンカウンティング計測が行えます。小型でも有効受光面サイズはφ15 mmと大きいため効率良く光を集めることができ、また他の光電子増倍管モジュールと比較して耐振動衝撃特性に優れていますので、携帯型装置に適しています。
仕様
| 受光面形状 | 円形 |
|---|---|
| 受光面サイズ | φ15 mm |
| 感度波長 (Short) | 300 nm |
| 感度波長 (Long) | 850 nm |
| 感度波長 (Peak) | 380 nm |
| 外形寸法 (W x H x D) | 26.0 mm x 50.0 mm x 56.0 mm |
| 入力電圧 | +4.5 V ～ +5.5 V |
| 最大入力電圧 | 6 V |
| 最大入力電流 | 60 mA |
| 計数感度 at 300 nm Typ. | 1.7 x 105 s-1・pW-1 |
| 計数感度 at 400 nm Typ. | 2.1 x 105 s-1・pW-1 |
| 計数感度 at 500 nm Typ. | 1.6 x 105 s-1・pW-1 |
| 計数感度 at 600 nm Typ. | 1.0 x 105 s-1・pW-1 |
| 計数感度 at 700 nm Typ. | 5.9 x 104 s-1・pW-1 |
| カウントリニアリティ | 1.5 x 106 s-1 |
| ダークカウント Typ. | 2000 s-1 |
| ダークカウント Max. | 3500 s-1 |
| パルスペア分解能 | 70 ns |
| 出力パルス幅 | 30 ns |
| 出力パルス波高 Min. | 3 V |
| 出力パルス波高 Typ. | 3.5 V |
| 推奨負荷抵抗 | 50 Ω |
| 信号出力論理 | 正論理 |
| 動作周囲温度 | +5 ℃ ～ +40 ℃ |
| 保存温度 | -20 ℃ ～ +50 ℃ |
| 質量 | 70 g |

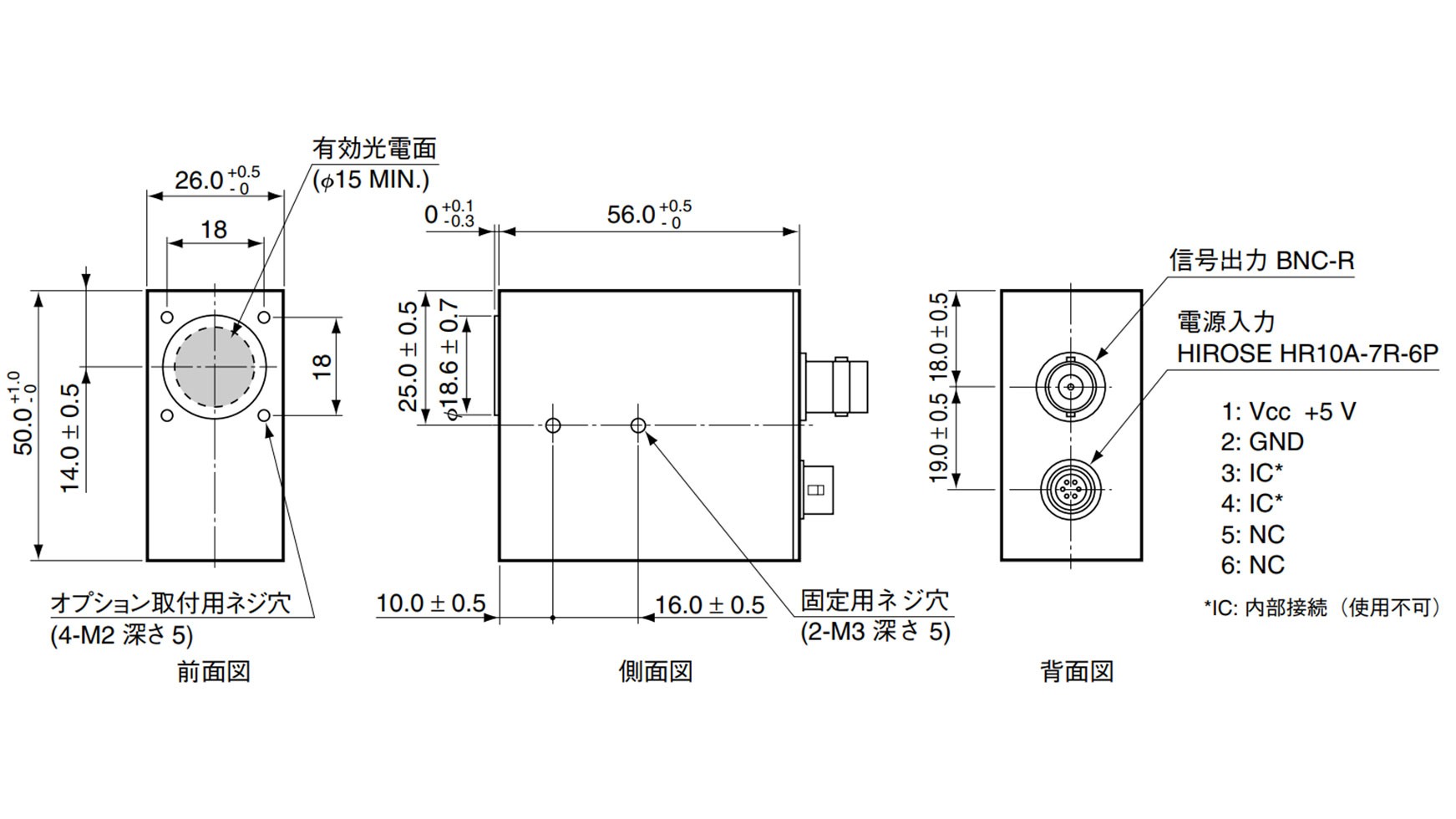

外形寸法図 (単位: mm)
