H9306/H9307シリーズは、φ13 mm (1/2")サイドオン型光電子増倍管と高圧電源回路、低雑音アンプを内蔵した電圧出力型光センサモジュールです。H9306シリーズは電流電圧変換係数1 V/μA・周波数帯域20 kHz、H9307シリーズは0.1 V/μA・200 kHzのアンプを内蔵しています。また、高圧電源回路にコッククロフト・ウォルトン回路を採用しているため、低消費電力です。入出力にケーブルを採用しており、機器組み込みに便利です。
|受光面サイズ||3.7 x 13.0 mm|
|感度波長 (Short)||185 nm|
|感度波長 (Long)||900 nm|
|感度波長 (Peak)||400 nm|

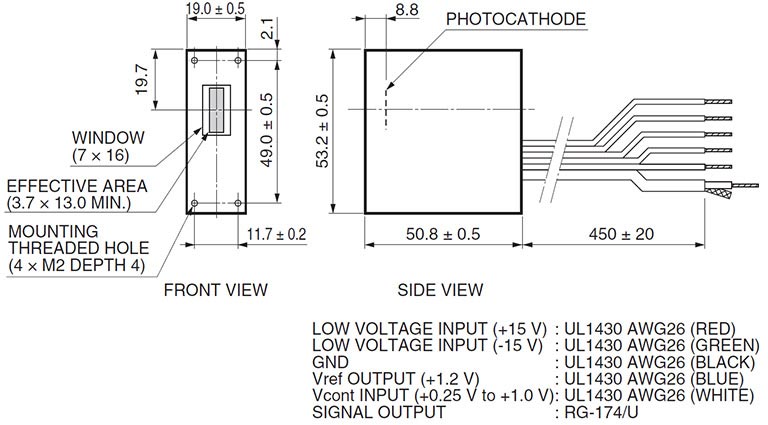

|外形寸法 (W x H x D)||19.0 x 53.2 x 50.8 mm|
|最大出力信号電圧||+10 (負荷抵抗 10kΩ) V|
|[陰極特性] ルーメン感度 Min.||200 μA/lm|
|[陰極特性] ルーメン感度 Typ.||300 μA/lm|
|[陰極特性] 青感度指数 （CS 5-58） Typ.||-|
|[陰極特性] 赤感度比 Typ.||0.3|
|[陰極特性] 放射感度 Typ.||77 mA/W|
|[陽極特性] ルーメン感度 Min.||4.0 x 108 V/lm|
|[陽極特性] ルーメン感度 Typ.||1.2 x 109 V/lm|
|[陽極特性] 放射感度 Typ.||310 V/nW|
|[陽極特性] 暗中での電圧出力(30分後) Typ.||1 mV|
|[陽極特性] 暗中での電圧出力(30分後) Max.||10 mV|
|出力オフセット電圧 Typ.||±3 mV|
|リップルノイズ （peak to peak） Max.||0.8 mV|
|セトリングタイム Max.||10 s|
