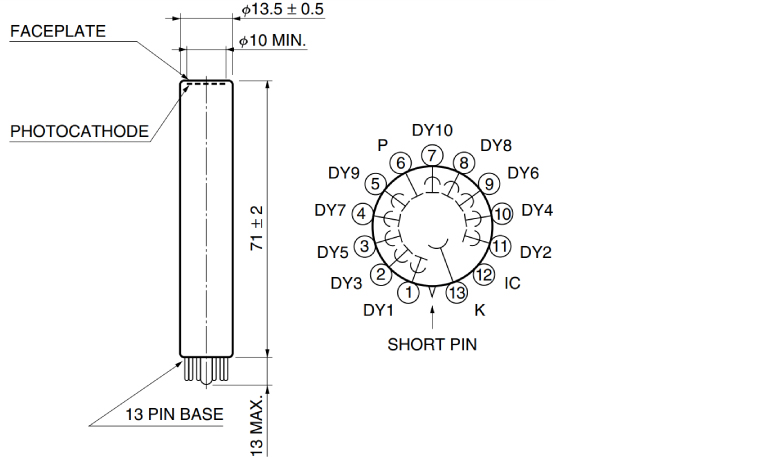

φ13mmヘッドオン型 石英入射窓 Cs-Te光電面（有効面φ10mm/感度波長160～320nm） 波長160～320nmでの分光分析 ソーラ・ブラインドにての測光
|感度波長 (Short)||160 nm|
|感度波長 (Long)||320 nm|
|感度波長 (Peak)||240 nm|
|[最大定格] 陽極－陰極間電圧||1250 V|
|[最大定格] 平均陽極電流||0.01 mA|
|陽極－陰極間 印加電圧||1000 V|
|[陰極特性] 放射感度 Typ.||28 (at 254 nm) mA/W|
|[陽極特性] ルーメン感度 Min.||4.0 x 103 (A/W, at 254 nm) A/lm|
|[陽極特性] 放射感度 Typ.||1.4 x 104 (at 254 nm) A/W|
|[陽極特性] ゲイン Typ.||5.0 x 105|
|[陽極特性] 暗電流(30分後) Typ.||0.3 nA|
|[陽極特性] 暗電流(30分後) Max.||1 nA|
|[時間特性] 上昇時間 (Tr) Typ.||2.5 ns|
|[時間特性] 走行時間 (T.T.) Typ.||24 ns|
