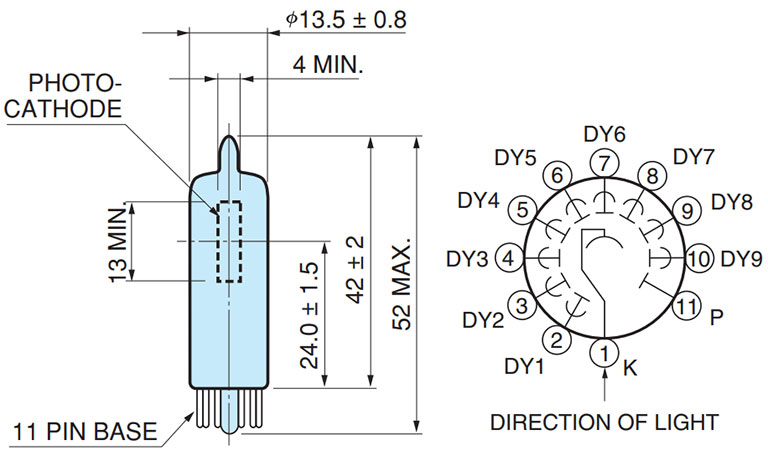

|受光面サイズ||4 x 13 mm|
|感度波長 (Short)||160 nm|
|感度波長 (Long)||320 nm|
|感度波長 (Peak)||230 nm|
|[最大定格] 陽極－陰極間電圧||1250 V|
|[最大定格] 平均陽極電流||0.01 mA|
|陽極－陰極間 印加電圧||1000 V|
|[陰極特性] 放射感度 Typ.||50 (at 254 nm) mA/W|
|[陽極特性] 放射感度 Typ.||2.0 x 105 (at 254 nm) A/W|
|[陽極特性] ゲイン Typ.||4.0 x 106|
|[陽極特性] 暗電流(30分後) Typ.||0.5 nA|
|[陽極特性] 暗電流(30分後) Max.||5 nA|
|[時間特性] 上昇時間 (Tr) Typ.||1.4 ns|
|[時間特性] 走行時間 (T.T.) Typ.||15 ns|
