撮像条件
管電圧:15 kV 管電流:2.0 mA
パッキング工程時に混入した、薄い異物の噛み込みを検出することが可能です。
撮像条件
管電圧:30 kV 管電流:0.5 mA

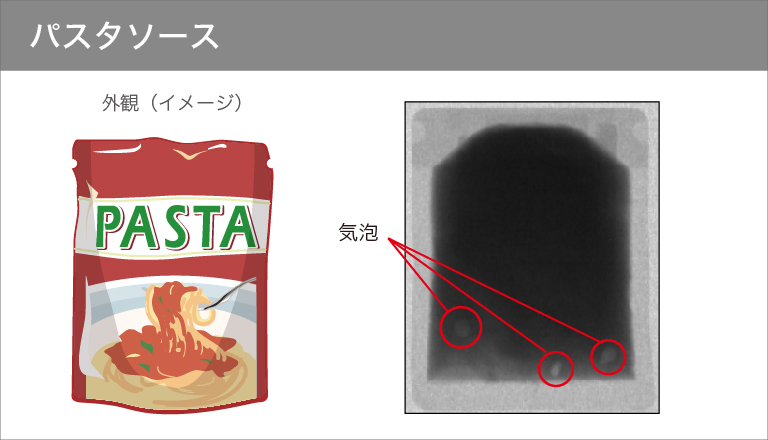

レトルト製品内部の異物や気泡を検出することが可能です。
撮像条件
管電圧:20 kV 管電流:6.0 mA

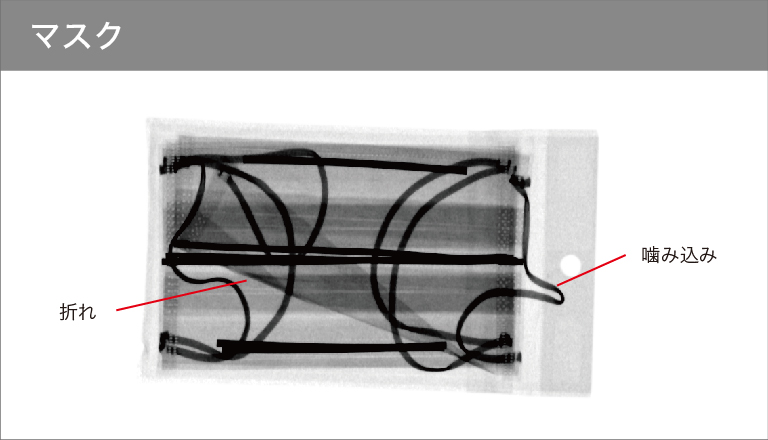

包装されたマスクの噛み込みや折れを検出することが可能です。
撮像条件
管電圧:20 kV 管電流:6.0 mA

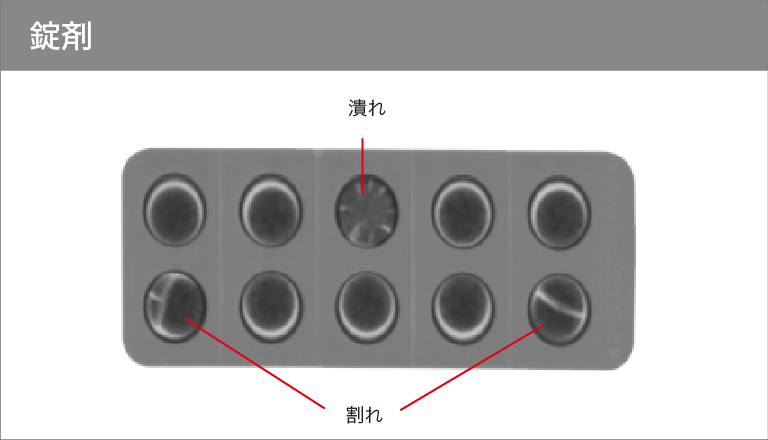

ブリスターパック内の錠剤の割れ、欠け、潰れを検出することが可能です。
撮像条件
管電圧:110 kV 管電流:8.0 mA

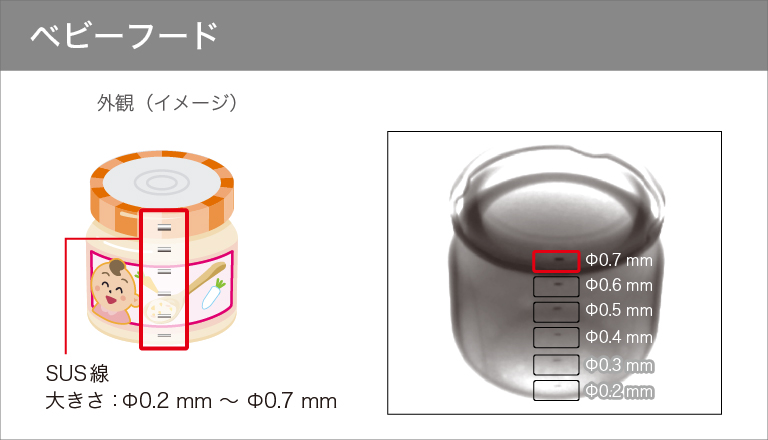

ベビーフードに混入した金属の異物検出において、金属蓋のような似ている物質に重なった場合でも異物の検出が可能です。

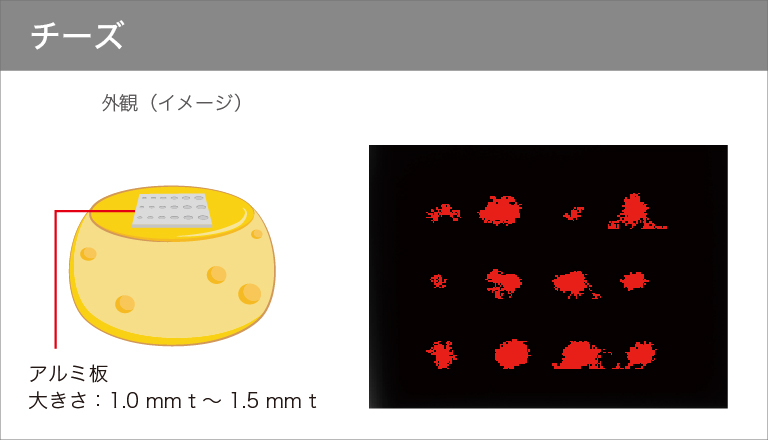

撮像条件
管電圧:110 kV 管電流:6.0 mA
チーズのような高密度で厚みのある対象物に混入した異物の検出が可能です。
撮像条件
管電圧:110 kV 管電流:6.0 mA

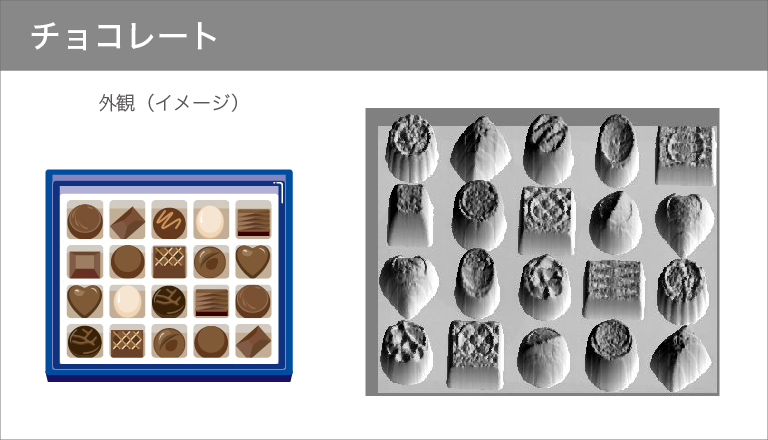

詰め合わせチョコレートのような複雑な形をした対象物での形状検査に加え、画像の濃淡から個々の重量の測定も可能です。
撮像条件
管電圧:60 kV 管電流:6.0 mA

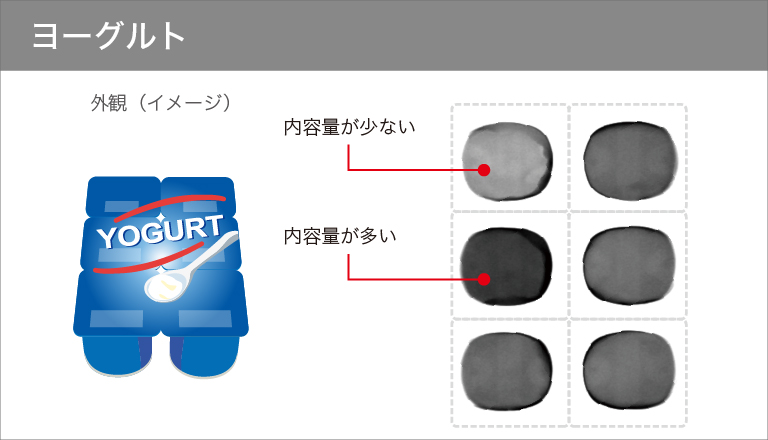

画像の濃淡から、ヨーグルトの内容量を計測することが可能です。
撮像条件
管電圧:60 kV 管電流:4.0 mA

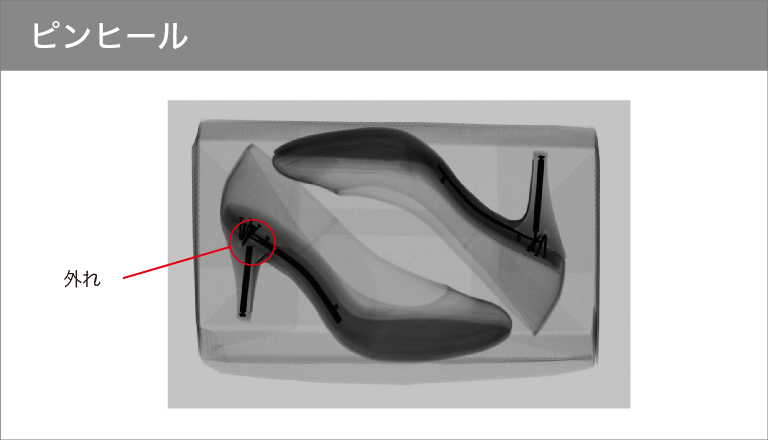

ピンヒール内部で外れているボルト/釘を検査することが可能です。
