-02 / -11 / -12

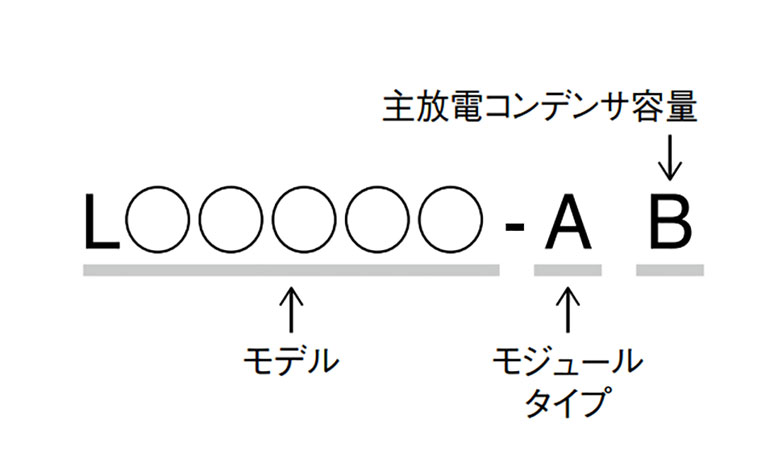

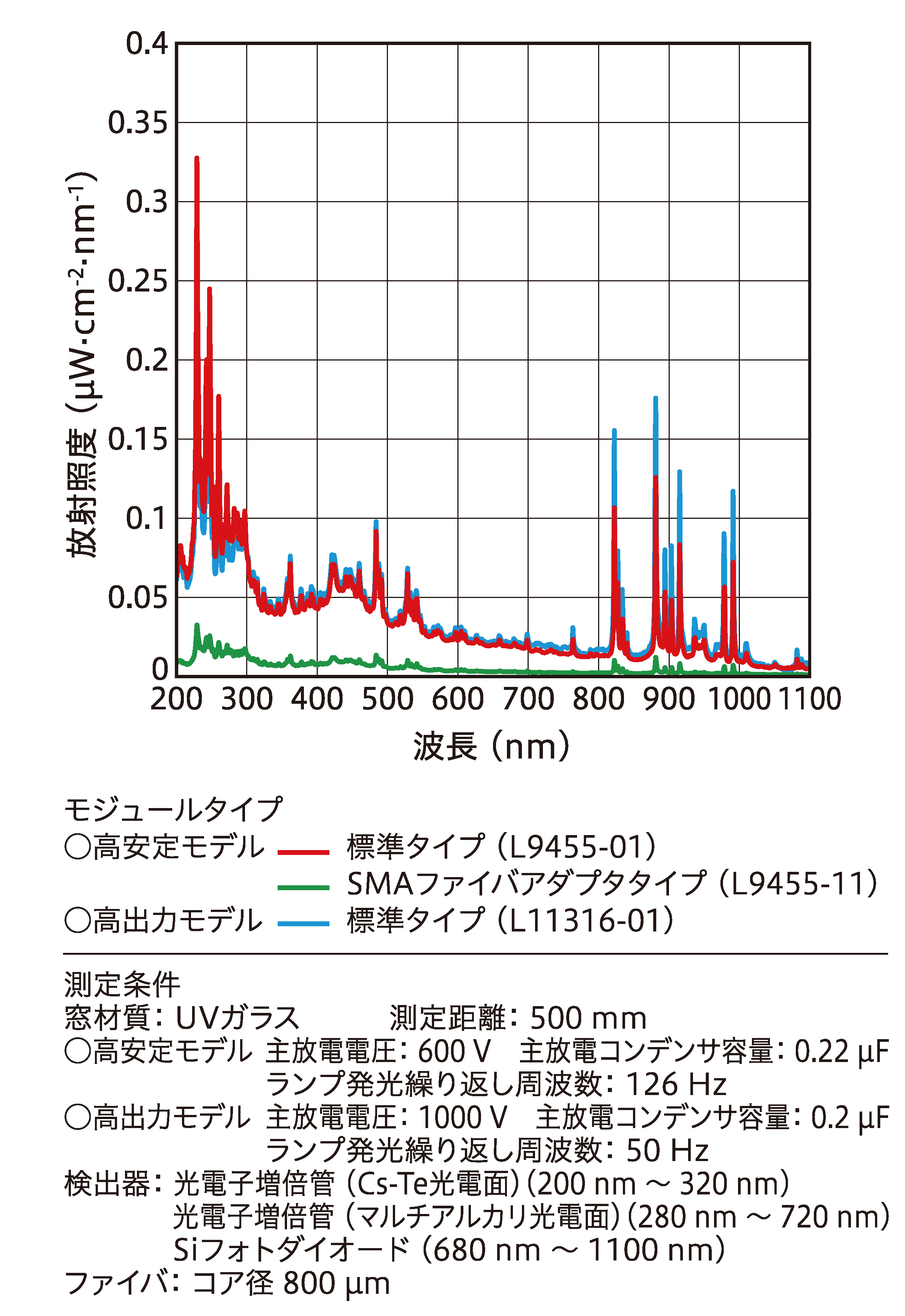

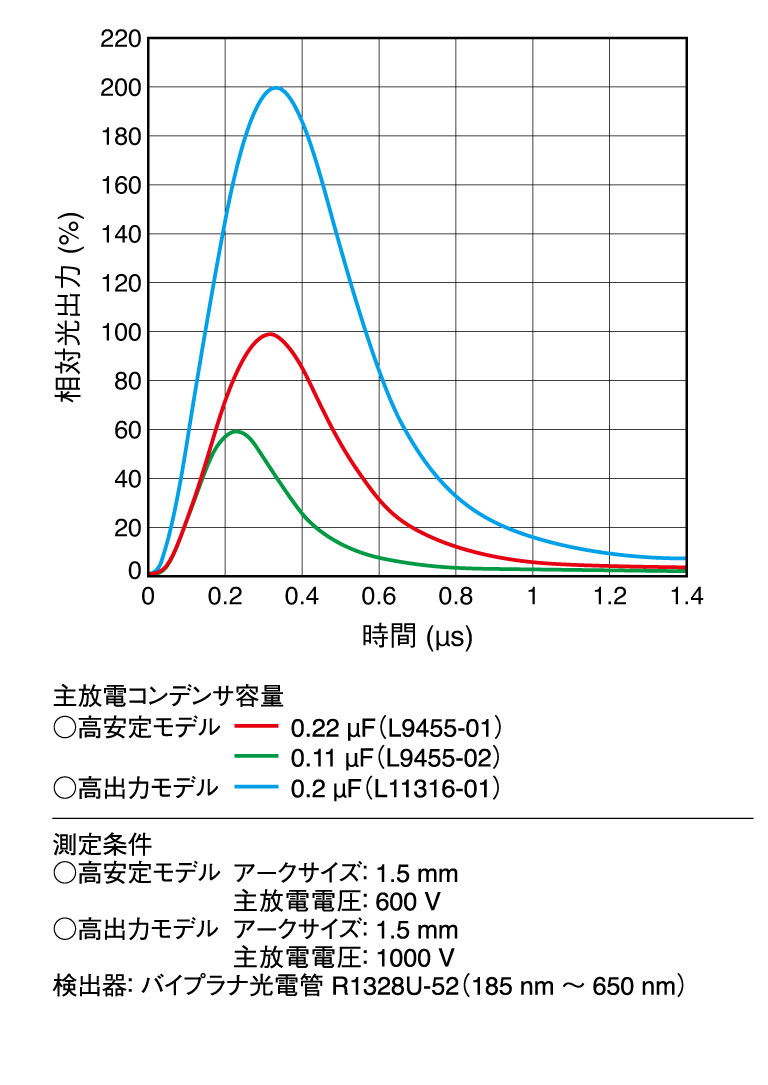

|L9456-01 / -02||L11316-01 / -11||L11317-01|
|発光波長範囲||185 ～ 2500||nm|
|主放電電圧可変範囲||内部||400 ～ 600 (*1)||650 ～ 1000 (*1)||V|
|外部||400 ～ 600 (*2)||500 ～ 1000 (*3)|
|主放電コンデンサ容量||0.22 / 0.11||0.2||μF|
|光出力安定性 (*4)||Typ.||0.4||0.3||0.9||0.4||％ CV|

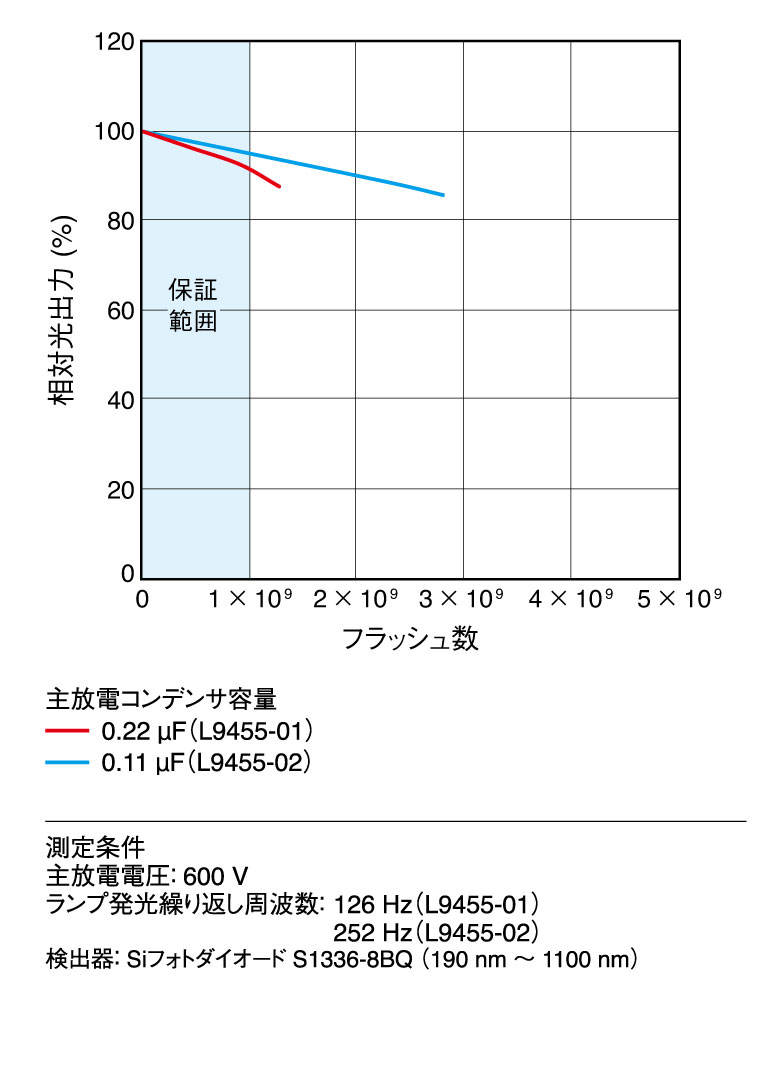

|保証寿命 (*5)||1 × 109||5 × 108||フラッシュ|
|入力電圧||11 ～ 28||21.6 ～ 26.4||V|
|トリガ信号||矩形波 5 V ～ 10 V, 10 μs幅以上 (*6)||－|
|動作温度範囲||0 ～ +40||℃|
|保存温度範囲||-40 ～ +90||℃|
Emission limits: CISPR 11 Group 1 Class A
Immunity requirements: Table 2
|安全性規格||IEC/EN 62471 Risk Group 3|
|耐振動特性||5 Hz ～ 200 Hz、 15 m/s2||－|
*2: 外部：コントロール電圧 3.2 V ～ 4.8 Vにて可変
*3: 外部：コントロール電圧 2.44 V ～ 4.88 Vにて可変
*4: 光出力安定性(ランプ発光繰り返し周波数が10 Hz以上の場合)
光出力安定性(％ CV) ＝ 光出力標準偏差 / 平均光出力 × 100
光出力安定性(％ p-p) ＝ (最大光出力 - 最小光出力) / 平均光出力 × 100
*5: 弊社製Siフォトダイオード S1336-8BQ にて測定した値です。
寿命の定義は5 W動作で、190 nm ～ 1100 nmでの光出力が初期値の50 ％に低下した時点、または光出力安定性が仕様のMax.の値を超えた時点としています。
*7: 動作時の筐体温度が45 ℃を超える場合は冷却が必要です。
|最大平均ランプ入力 (連続) (*10)
|Ｌ9455-01 / -11
|Ｌ9455-02 / -12
|L11316-01 / -11
*8: 最大ランプ入力エネルギー (1フラッシュ)(J)
E ＝ 1/2 × C × V2 C：主放電コンデンサ容量(F)、 V：主放電電圧(V)
*9: 高い安定性で動作させるために、ランプ発光繰り返し周波数は10 Hz以上を推奨します。
P ＝ E × f E：最大ランプ入力エネルギー(1フラッシュ)(J)、 f：ランプ発光繰り返し周波数(Hz)
