2 Wキセノンフラッシュランプモジュール
2 Wキセノンフラッシュランプ・電源・トリガソケットを一体化し、ランプの性能を最大限引き出すように設計したモジュールです。
世界最小クラスの筐体サイズに加えて、5 Vバッテリー駆動の採用により、携帯型分析機器への組み込みを可能にします。
低電磁ノイズで取り扱いが容易なパッケージモデルと高い設計の自由度を誇る円筒基板モデルを用意しています。

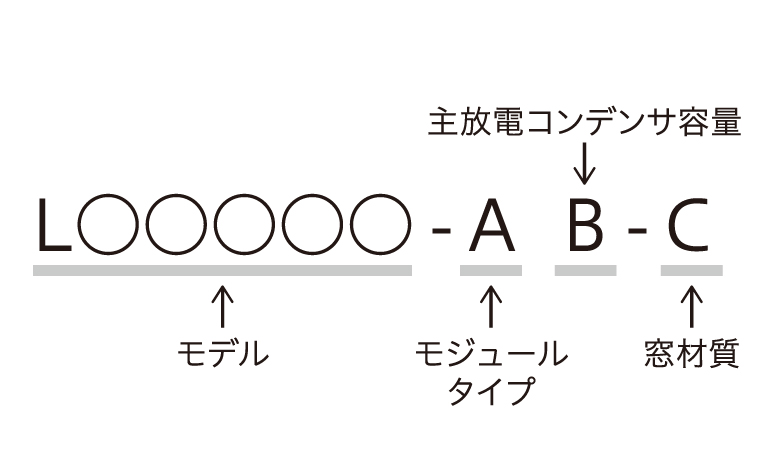

型名ガイド
モデル
| 型名 | モデル |
|---|---|
| L13651 | パッケージモデル |
| L13821 | 円筒基板モデル |
A: モジュールタイプ
| サフィックス | タイプ |
|---|---|
| 0 | 標準タイプ |
| 1 | SMAファイバアダプタタイプ |
NOTE:
L13821 は標準タイプのみとなります。
B: 主放電コンデンサ容量
| サフィックス | 容量 |
|---|---|
| 1 | 0.141 µF |
| 2 | 0.094 µF |
| 3 | 0.047 µF |
| 4 | 0.02 µF |
C: 窓材質
| サフィックス | 窓材質 | 発光波長範囲 |
|---|---|---|
| － | UVガラス | 185 nm ～ 2500 nm |
| 3 | MgF2 |
160 nm ～ 7500 nm |
NOTE:
L13651（SMAファイバアダプタタイプ）はUVガラスのみとなります。
L13821 はUVガラスのみとなります。
UVガラスの場合、サフィックスは省略されます。
特性

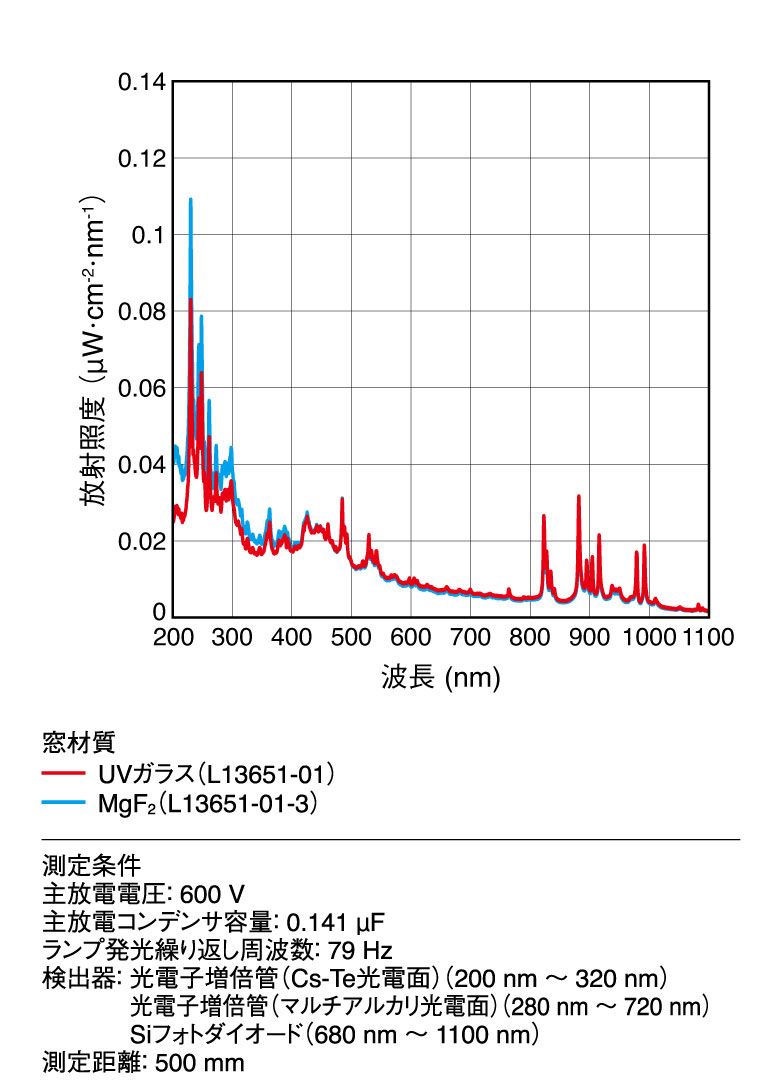

分光放射照度（代表値）

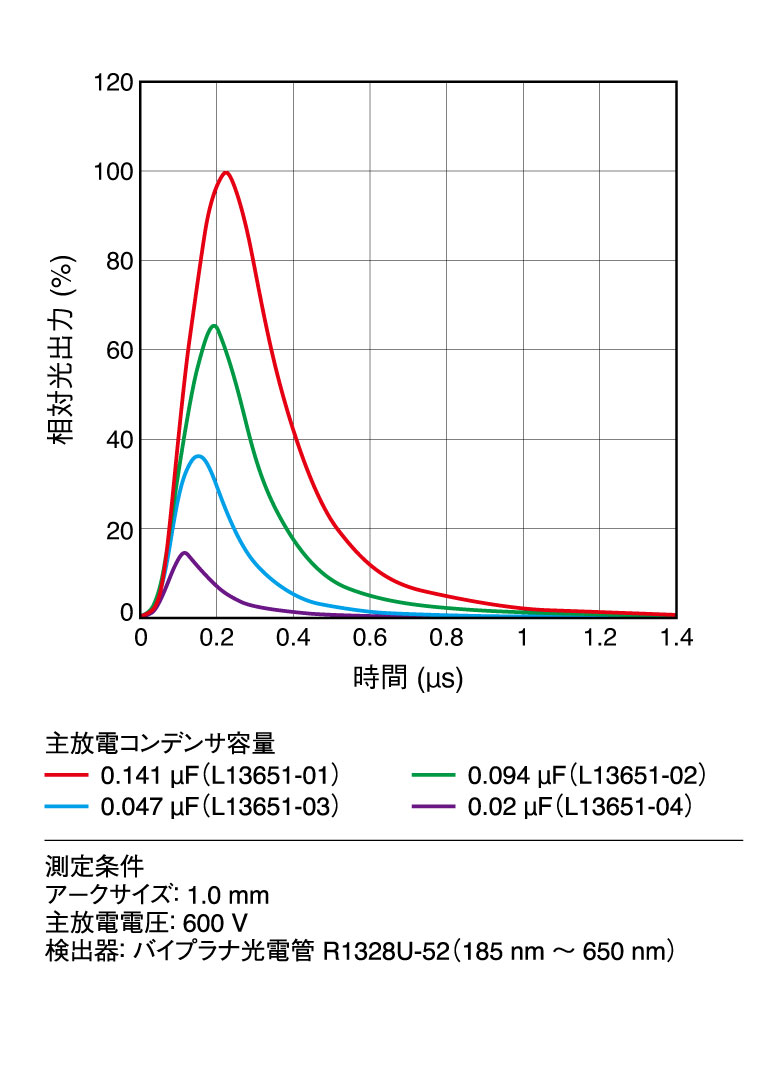

発光パルス波形（代表値）

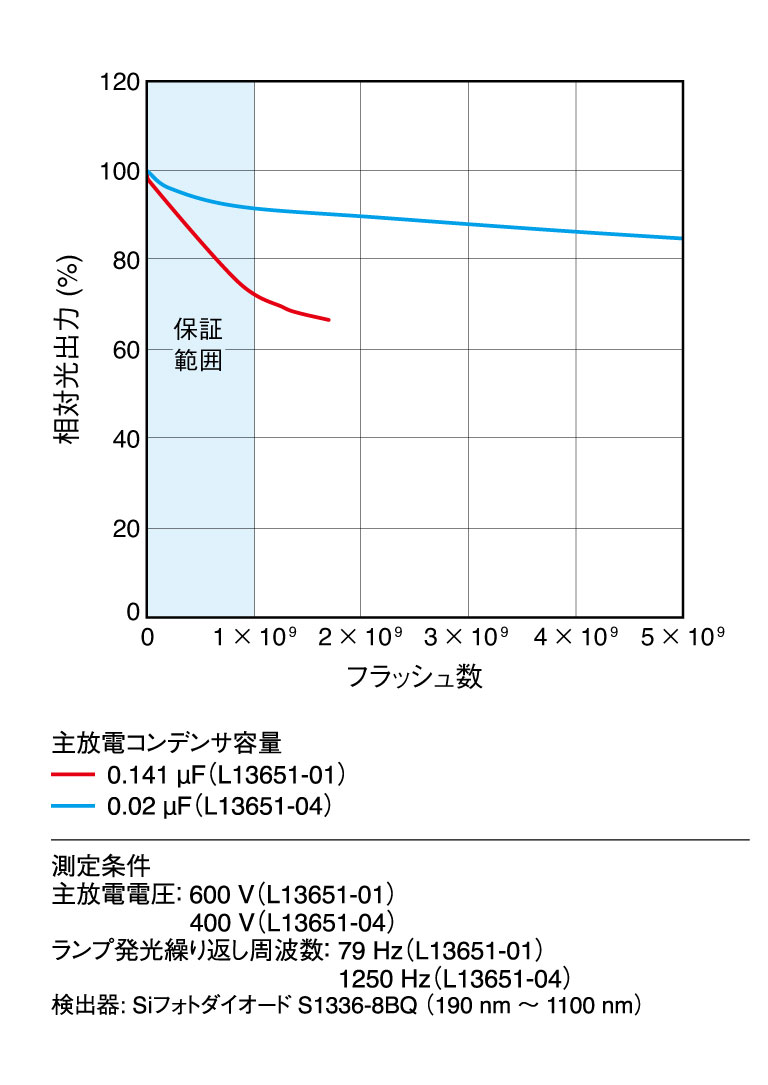

寿命特性（代表値）
仕様
| 項目 | パッケージモデル | 円筒基板モデル | 単位 | ||
|---|---|---|---|---|---|
| L13651-01/-02/-03/-04 L13651-11/-12/-13/-14 |
L13651-01-3/-02-3/-03-3/-04-3 | L13821-01/-02/-03/-04 | |||
| アークサイズ | 1.0 | mm | |||
| 窓材質 | UVガラス | MgF2 | UVガラス | － | |
| 発光波長範囲 | 185 ～ 2500 | 160 ～ 7500 | 185 ～ 2500 | nm | |
| 主放電電圧可変範囲 | 内部 (*1) | 400 ～ 600 | V | ||
| 外部 (*2) | 400 ～ 600 | ||||
| 主放電コンデンサ容量 | 0.141 / 0.094 / 0.047 / 0.02 | µF | |||
| 最大ランプ入力エネルギー（1フラッシュ） | 動作条件例に記載 | mJ | |||
| 最大ランプ発光繰り返し周波数 | 動作条件例に記載 | Hz | |||
| 最大平均ランプ入力（連続） | 動作条件例に記載 | W | |||
| 光出力安定性 (*3)(*4) | Typ. | 0.4 | ％ CV | ||
| 3.0 | ％ p-p | ||||
| Max. | 2.0 | ％ CV | |||
| 5.0 | ％ p-p | ||||
| 保証寿命 (*5) | 1 × 109 | フラッシュ | |||
| バッテリー使用時の動作時間 | 4 (*6) | h | |||
| 入力電圧 | 4.75 ～ 5.5, 10.8 ～ 13.2 | V | |||
| 入力電流 | 1 | A | |||
| 突入電流 | 1.5 | A | |||
| トリガ信号 | 矩形波 2.5 V ～ 5 V, 10 µs幅以上 (*7) | － | |||
| トリガ入力インピーダンス | 330 | Ω | |||
| 冷却方式 | 自然空冷 (*8) | － | |||
| 動作温度範囲 | 0 ～ +40 | ℃ | |||
| 保存温度範囲 | -40 ～ +90 | ℃ | |||
| 動作湿度範囲 | 85 ％以下（結露なきこと） | － | |||
| 保存湿度範囲 | 95 ％以下（結露なきこと） | － | |||
| 適合規格 | EMC規格 | IEC/EN 61326-1 Emission limits: CISPR 11 Group 1 Class B Immunity requirements: Table 1 |
－ | － | |
| 安全性規格 | IEC/EN 62471 Risk Group 3 | ||||
| 環境規格（RoHS） | IEC/EN 63000 | ||||
| 耐振動特性 | 5 Hz ～ 200 Hz、 15 m/s2 | － | |||
| 耐衝撃特性 | 500 | m/s2 | |||
NOTE:
*1: 内部：可変トリマにて調整
*2: 外部：コントロール電圧 3.2 V ～ 4.8 Vにて可変
*3: 光出力安定性（ランプ発光繰り返し周波数が10 Hz以上の場合）
光出力安定性（％ CV） ＝ 光出力標準偏差 / 平均光出力 × 100
光出力安定性（％ p-p） ＝ （最大光出力 - 最小光出力） × 100
*4: 2 W動作時（主放電電圧：600 V、主放電コンデンサ容量：0.141 µF、ランプ発光繰り返し周波数：79 Hz）
*5: 弊社製Siフォトダイオード S1336-8BQ にて測定した値です。
寿命の定義は2 W動作で、190 nm ～ 1100 nmでの光出力が初期値の50 ％に低下した時点、または光出力安定性が仕様のMax.の値を超えた時点としています。
*6: 下記動作条件で消灯するまでの値です(分光放射照度、光出力安定性は考慮していません)。
入力電圧：5 V 、 主放電電圧：600 V 、 主放電コンデンサ容量：0.141 µF 、ランプ発光繰り返し周波数：79 Hz 、使用バッテリー仕様：5400 mAh / 3.7 V
*7: 外部のみ、立ち上がりで同期
*8: 動作時の筐体温度が45 ℃を超える場合は冷却が必要です。
動作条件例
| 型名 | 主放電 コンデンサ容量 （µF） |
主放電電圧 （V） |
最大ランプ 入力エネルギー （1フラッシュ） （mJ） (*9) |
最大ランプ発光繰り返し周波数（Hz）(*10) | 最大平均ランプ入力（連続）（W）(*11) | ||
|---|---|---|---|---|---|---|---|
| 入力電圧： 4.75 V ～ 5.5 V |
入力電圧： 10.8 V ～ 13.2 V |
入力電圧： 4.75 V ～ 5.5 V |
入力電圧： 10.8 V ～ 13.2 V |
||||
| L13651-01/-11 L13651-01-3 L13821-01 |
0.141 | 400 | 11.3 | 117 | 117 | 2.0 | 2.0 |
| 500 | 17.7 | 113 | 113 | 2.0 | 2.0 | ||
| 600 | 25.4 | 79 | 79 | 2.0 | 2.0 | ||
| L13651-02/-12 L13651-02-3 L13821-02 |
0.094 | 400 | 7.5 | 266 | 266 | 2.0 | 2.0 |
| 500 | 11.9 | 170 | 170 | 2.0 | 2.0 | ||
| 600 | 16.9 | 118 | 118 | 2.0 | 2.0 | ||
| L13651-03/-13 L13651-03-3 L13821-03 |
0.047 | 400 | 3.8 | 400 | 532 | 1.5 | 2.0 |
| 500 | 5.9 | 255 | 340 | 1.5 | 2.0 | ||
| 600 | 8.5 | 177 | 236 | 1.5 | 2.0 | ||
| L13651-04/-14 L13651-04-3 L13821-04 |
0.02 | 400 | 1.6 | 625 | 1250 | 1.0 | 2.0 |
| 500 | 2.5 | 400 | 800 | 1.0 | 2.0 | ||
| 600 | 3.6 | 278 | 555 | 1.0 | 2.0 | ||
NOTE:
*9: ランプ入力エネルギー （1フラッシュ）（J）
E ＝ 1/2 × Cm × Vm2 Cm：主放電コンデンサ容量（F）、Vm：主放電電圧（V）
*10: 高い安定性で動作させるために、ランプ発光繰り返し周波数は10 Hz以上を推奨します。
*11: 平均ランプ入力（連続）（W）
P ＝ E × f E：ランプ入力エネルギー（1フラッシュ）（J）、 f：ランプ発光繰り返し周波数（Hz）
