・画素サイズ: 8 × 8 μm
・高速マルチポート読み出し (読み出し速度: 40 MHz max. × 4ポート)
・高いCCD変換効率: 21 μV/e- typ.

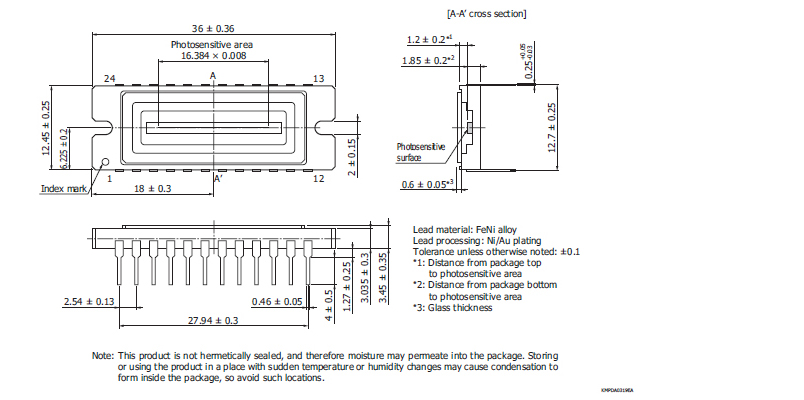

|イメージサイズ||16.384 x 0.008 mm|
|有効画素数||2048 x 1 pixels|
|画素サイズ||8 x 8 μm|
|ラインレート typ.||36000 ライン/s|
|ラインレート max.||72000 ライン/s|
|暗電流 typ.||30 e-/pixel/s|
|読み出しノイズ typ.||20 e- rms|
|測定条件||指定のない場合はTyp. Ta=25 ℃|
