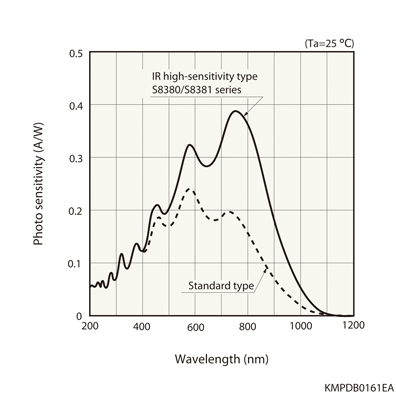

標準のNMOSリニアイメージセンサに比べ、赤外域、軟X線域において高感度になるように設計されたタイプです。最大感度波長は近赤外域 (λp=750 nm) となっています。S8380-128Qは50 μm × 2.5 mm のフォトダイオードが直線的に並んでいます。受光窓は、石英を標準品としています。
|イメージサイズ||6.4 x 2.5 mm|
|有効画素数||128 x 1 pixels|
|画素サイズ||50 x 2500 μm|
|ラインレート max.||15600 ライン/s|
|専用駆動回路||C7884, C7884G, C7884-01, C7884G-01, C8892|
|測定条件||指定のない場合はTyp. Ta=25 ℃
飽和電荷量: Vb=2.0 V, Vφ=5.0 V
