G12242-0707Wは、CMOS読み出し回路 (ROIC: readout integrated circuit)と裏面入射型InGaAsフォトダイオードのハイブリッド構造を採用しています。1画素は1つのInGaAsフォトダイオードと1つのROICによって構成され、バンプにより電気的に接続されています。ROICにはタイミング発生器が内蔵されており、外部からマスタークロック (MCLK)とマスタースタートパルス (MSP)を入力するだけで、アナログビデオ出力、AD-TRIG出力が得られます。 G12242-0707Wは128 × 128画素が20 μmピッチで配列され、1本のビデオラインから信号が読み出されます。入射光はInGaAsフォトダイオードで光電変換された後、Inバンプを介してROICに入力されます。ROICではチャージアンプで電圧変換され、シフトレジスタにより順次ビデオラインから出力されます。なお、G12242-0707Wはメタルパッケージで1段電子冷却型ハーメチック構造のため、安定動作を実現しています。

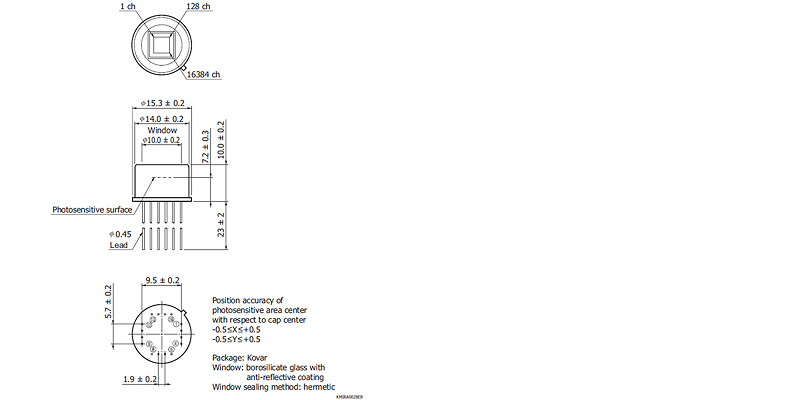

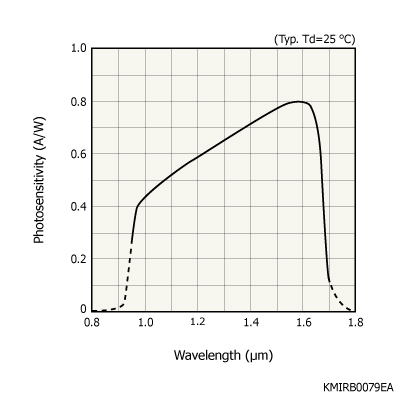

|最大感度波長 typ.||1550 nm|
|イメージサイズ||2.56 × 2.56 mm|
|画素サイズ||20 × 20 μm|
|総画素数||128 × 128 pixels|
|フレームレート max.||258 フレーム/s|
|測定条件||Td=15 ℃, Vdd=5 V, PD_bias=3V|
