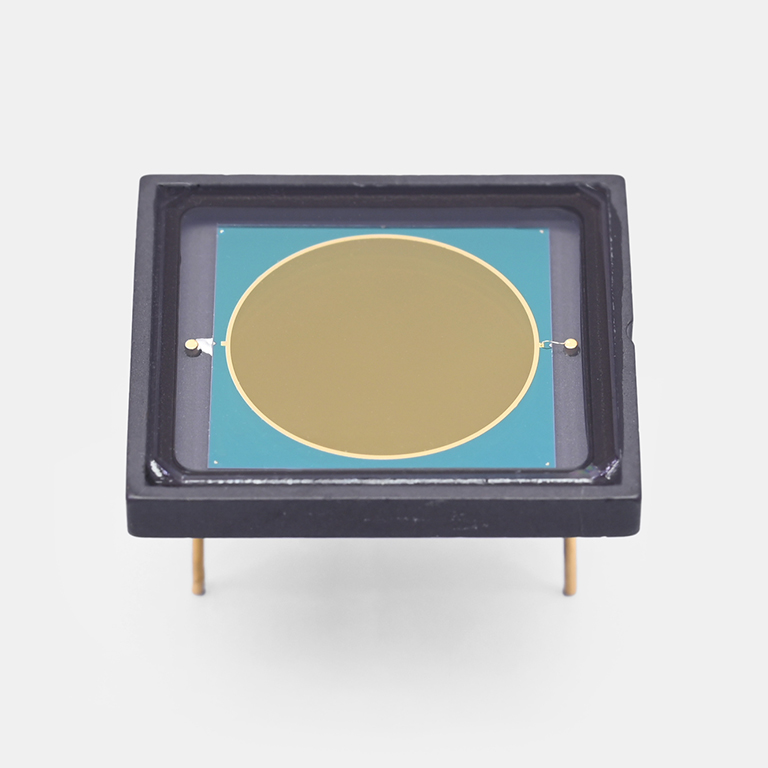

本製品は、1.5 μm帯で低PDL (Polarization Dependence Loss)を実現したInGaAs PINフォトダイオードです。低雑音、大並列抵抗という特長ももっています。■特長
|最大感度波長 typ.||1.55 μm|
|受光感度 typ.||1.1 A/W|
|暗電流 max.||125 nA|
|遮断周波数 typ.||0.6 MHz|
|端子間容量 typ.||3500 pF|
|雑音等価電力 typ.||1×10-13 W/Hz1/2|
|測定条件||指定のない場合はTyp. Ta=25 ℃, 受光感度: λ=λp, 暗電流: VR=1 V, 遮断周波数: VR=1 V, RL=50 Ω, -3 dB, 端子間容量: VR=1 V, f=1 MHz|
