DIP型セラミックパッケージの、1次元Siフォトダイオードアレイです。分光光度計など微弱な光信号の検出用に開発さ れ、紫外から近赤外までの広い感度波長範囲を有しています。すべての素子に逆バイアスを加えて使用することが可能な ため、入射光量を蓄積読み出し方式で高感度に検出することができます。また素子間クロストークが小さいため、信号の 純度を低下させることがありません。 なお、受光窓に特殊フィルタを付けることも可能です (特注品)。

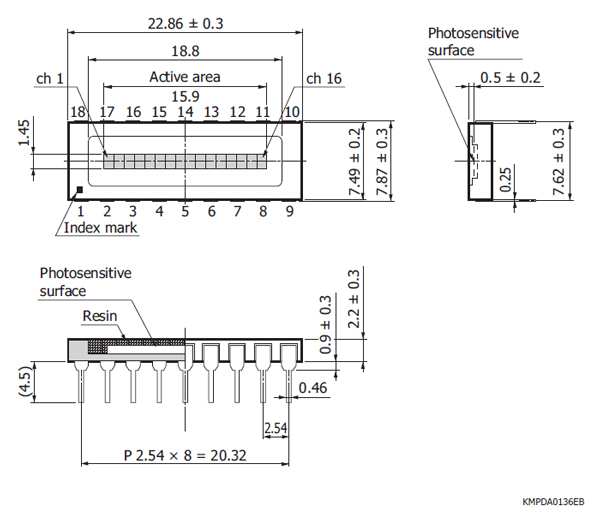

|素子サイズ (1素子あたり)||0.9 × 1.45 mm|
|逆電圧 max.||15 V|
|最大感度波長 typ.||960 nm|

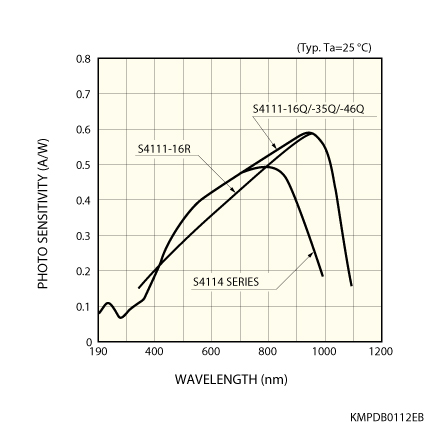

|受光感度 typ.||0.58 A/W|
|暗電流 max.||5 pA|
|上昇時間 typ.||0.5 μs|
|端子間容量 typ.||200 pF|
|測定条件||指定のない場合はTyp. Ta=25 ℃, 1素子あたり, 受光感度: λ=960 nm, 暗電流: VR=10 mV, 上昇時間: VR=0 V, 端子間容量: VR=0 V|
