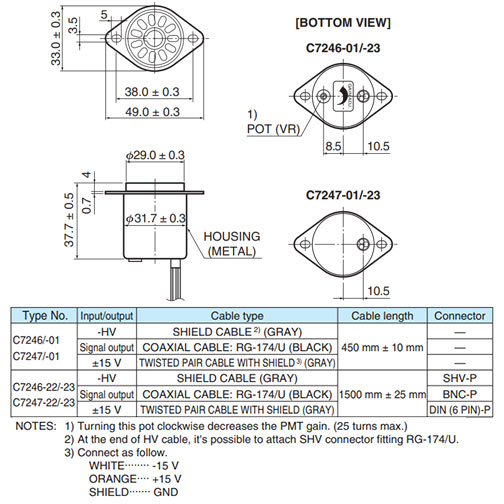

|適合PMT||φ28 mm サイドオン型|
|[最大定格] アンプ用入力電圧||±18 V|
|[最大定格] デバイダ回路用入力電圧||-1500 V|
|[最大定格] 動作温度範囲||0 ～ +40 ℃|
|[最大定格] 保存温度||-15 ～ +60 ℃|
|周波数帯域 (-3dB)||DC ～ 5 MHz|
|信号出力オフセット電圧 Max.||±3 mV|
|出力雑音電圧 (rms) Typ.||4.5 mV|
|アンプ用入力電圧||±12 ～ ±15 V|
|アンプ用入力電流 (±15V入力) Max.||+140/-50 mA|
|デバイダ回路用入力電圧 (推奨値)||‐300 ～ -600 V|
|デバイダ回路電流 Typ.||166 (at -600 V) μA|
|質量 Typ.||170 g|
