|入力電圧||AC 100 ～ 240 V|
|特性保証出力電圧||-320 ～ -2000（可変） V|
|リップル/ノイズ (peak to peak)||0.003* （*単位：%） mV|
|温度係数 Max.||±0.01 %/℃|
|動作周囲温度||0 ～ +40 ℃|
|動作周囲湿度||85 % 以下|
|保存温度||-20 ～ +50 ℃|
|保存湿度||90 % 以下|

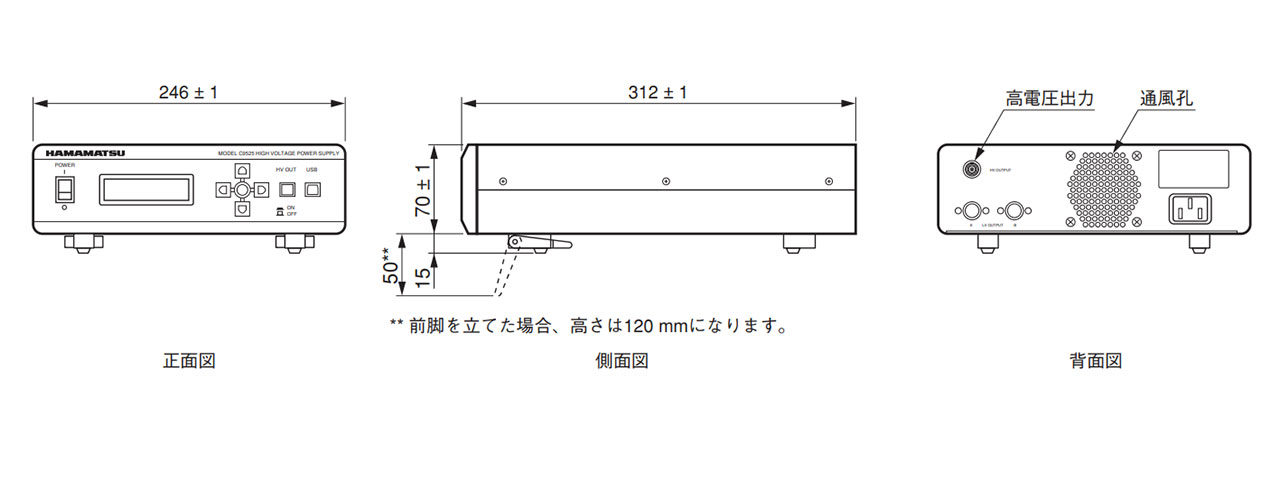

|外形寸法 (W x H x D)||246 x 85 x 312 mm|
|質量||約 3.0 kg|
