|入力電圧||AC 100 V|
|特性保証出力電圧||-320 V ～ -3500 V|
|入力変動率||±0.005 % (入力電圧 ±10 % 変動に対して)|
|リップル/ノイズ (peak to peak)||0.003 %|
|温度係数 Max.||±0.01 %/℃|
|動作周囲温度||0 ℃ ～ +40 ℃|
|動作周囲湿度||85 % 以下|
|保存温度||-20 ℃ ～ +50 ℃|
|保存湿度||90 % 以下|

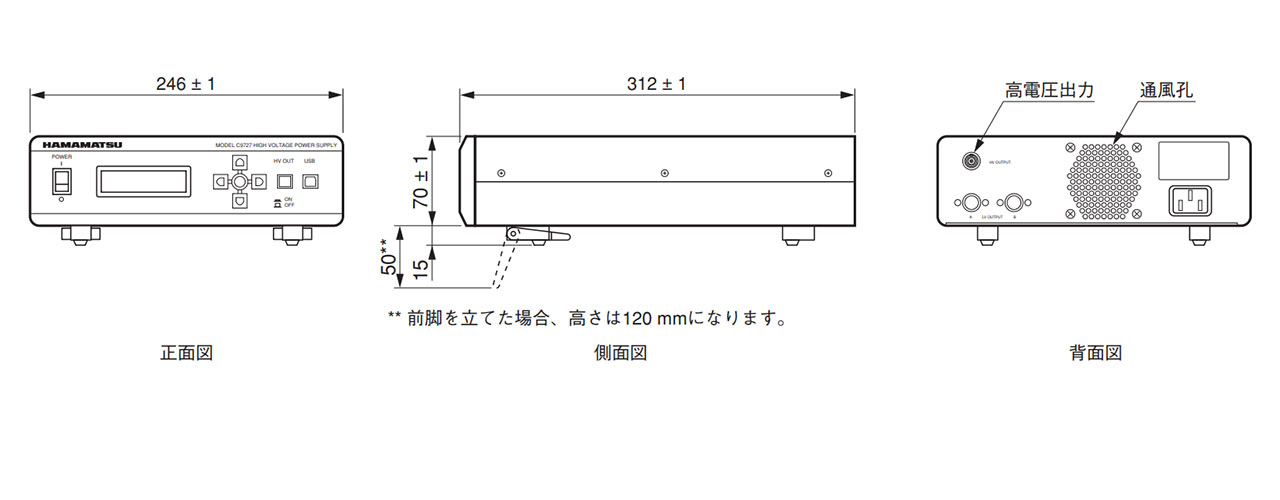

|外形寸法 (W x H x D)||246 mm x 85 mm x 312 mm|
