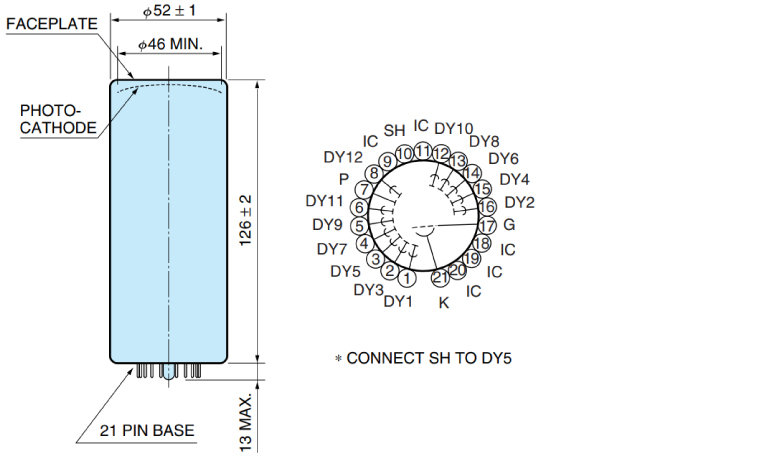

φ51mmヘッドオン型 赤外増強型マルチアルカリ光電面（有効径φ46mm/感度波長範囲300～900nm） 窓形状：プラノコンケープ 近赤外域での微弱光計測 NOx発光による計測
|感度波長 (Short)||300 nm|
|感度波長 (Long)||900 nm|
|感度波長 (Peak)||600 nm|
|[最大定格] 陽極－陰極間電圧||2700 V|
|[最大定格] 平均陽極電流||0.2 mA|
|陽極－陰極間 印加電圧||1500 V|
|[陰極特性] ルーメン感度 Min.||140 μA/lm|
|[陰極特性] ルーメン感度 Typ.||230 μA/lm|
|[陰極特性] 赤感度比 （R-68） Typ.||0.35|
|[陰極特性] 放射感度 Typ.||50 mA/W|
|[陽極特性] ルーメン感度 Min.||15 A/lm|
|[陽極特性] ルーメン感度 Typ.||100 A/lm|
|[陽極特性] 放射感度 Typ.||2.2 x 104 A/W|
|[陽極特性] ゲイン Typ.||4.3 x 105|
|[陽極特性] 暗電流(30分後) Typ.||30 nA|
|[陽極特性] 暗電流(30分後) Max.||100 nA|
|[時間特性] 上昇時間 (Tr) Typ.||2.6 ns|
|[時間特性] 走行時間 (T.T.) Typ.||48 ns|
