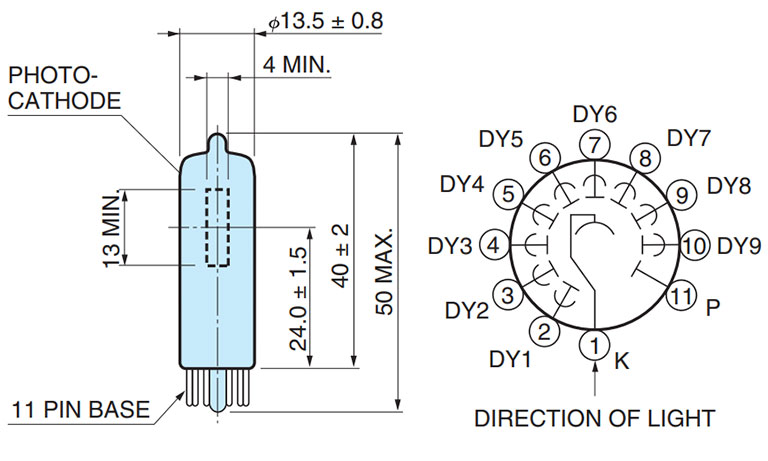

|受光面サイズ||4 x 13 mm|
|感度波長 (Short)||185 nm|
|感度波長 (Long)||900 nm|
|感度波長 (Peak)||480 nm|
|[最大定格] 陽極－陰極間電圧||1250 V|
|[最大定格] 平均陽極電流||0.01 mA|
|陽極－陰極間 印加電圧||1000 V|
|[陰極特性] ルーメン感度 Min.||700 μA/lm|
|[陰極特性] ルーメン感度 Typ.||750 μA/lm|
|[陰極特性] 青感度指数 （CS 5-58） Typ.||17|
|[陰極特性] 放射感度 Typ.||116 mA/W|
|[陽極特性] ルーメン感度 Min.||400 A/lm|
|[陽極特性] ルーメン感度 Typ.||1800 A/lm|
|[陽極特性] 放射感度 Typ.||2.8 x 105 A/W|
|[陽極特性] ゲイン Typ.||2.4 x 106|
|[陽極特性] 暗電流(30分後) Typ.||4 nA|
|[陽極特性] 暗電流(30分後) Max.||10 nA|
|[時間特性] 上昇時間 (Tr) Typ.||1.4 ns|
|[時間特性] 走行時間 (T.T.) Typ.||15 ns|
