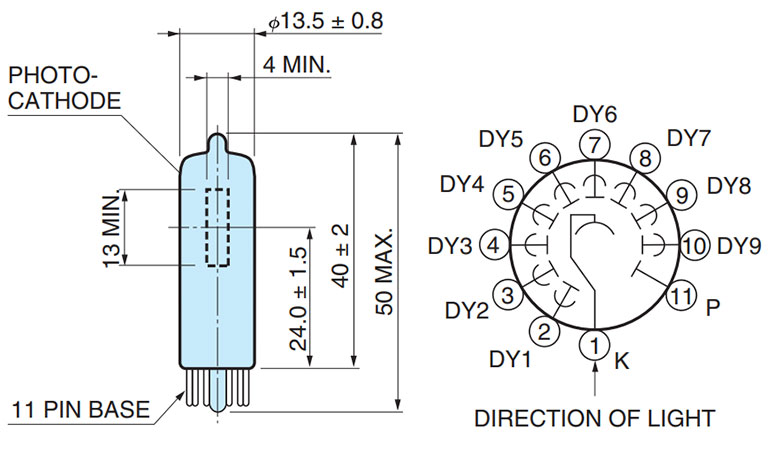

|受光面サイズ||4 x 13 mm|
|感度波長 (Short)||185 nm|
|感度波長 (Long)||830 nm|
|感度波長 (Peak)||530 nm|
|[最大定格] 陽極－陰極間電圧||1250 V|
|[最大定格] 平均陽極電流||0.01 mA|
|陽極－陰極間 印加電圧||1000 V|
|[陰極特性] ルーメン感度 Min.||140 μA/lm|
|[陰極特性] ルーメン感度 Typ.||200 μA/lm|
|[陰極特性] 青感度指数 （CS 5-58） Typ.||7.5|
|[陰極特性] 赤感度比 （R-68） Typ.||0.15|
|[陰極特性] 放射感度 Typ.||70 mA/W|
|[陽極特性] ルーメン感度 Min.||300 A/lm|
|[陽極特性] ルーメン感度 Typ.||700 A/lm|
|[陽極特性] 放射感度 Typ.||2.5 x 105 A/W|
|[陽極特性] ゲイン Typ.||3.5 x 106|
|[時間特性] 上昇時間 (Tr) Typ.||1.4 ns|
|[時間特性] 走行時間 (T.T.) Typ.||15 ns|
