高ダイナミックレンジストリークカメラ
C13410シリーズ
10 000：1のダイナミックレンジで超高速単発現象の計測が可能！
Ｃ13410シリーズは、多数の光電子が発生する超高速の単発光現象を10 000：1のダイナミックレンジで計測することができます。強い信号光を入射しても波形歪が生じないため、単発現象をより高いS/N比で測定することが可能です。
特長
- 1掃引による同一ストリーク像で、10 000：1の光強度変化測定が可能（時間分解能100 ps時）
- 時間分解能5 ps以内※
- 大きな有効入射面（光電面）サイズ：17 mm
- 時間軸・空間軸（波長軸）にわたる光強度を同時測定
※ 時間分解能5 psでの測定では、ダイナミックレンジは1000：1になります。また、単一光電子を検出する場合は、イメージインテンシファイアを取り付ける必要があります。
用途
- X線レーザ、自由電子レーザ、各種パルスレーザの研究
- プラズマ発光、放電、レーザアブレーション、燃焼、爆発の測定
- ピコ秒過渡吸収測定
- ライダートムソン散乱、レーザ測距
- 蛍光寿命測定、時間分解ラマン測定
仕様
| 型名 | C13410-01A | C13410-01B | C13410-02A | C13410-02B | |
|---|---|---|---|---|---|
| 光電面 | S-20 | S-1 | |||
| 感度波長域 | 200 nm ～ 850 nm | 300 nm ～ 1060 nm | |||
| 有効光電面サイズ | 7.0 mm × 17.48 mm | ||||
| 蛍光面 | P-43 Φ25 mm ファイバ出力 | ||||
| 空間解像度 | 18 lp/mm 以上（光電面上中央、波長530 nm） | ||||
| イメージ増強部 | イメージインテンシファイア（I.I.）/ イメージブースタ（I.B.）外付け | ||||
| 収束方式 | 電磁収束 | ||||
| 時間分解能 | 5 ps 以内（最速レンジ） | ||||
| 掃引時間/全画面 1、2、5ステップ | 0.5 ns ～ 1 ms | 0.5 ns ～ 10 ms | 0.5 ns ～ 1 ms | 0.5 ns ～ 10 ms | |
| トリガージッタ | ±20 ps 以下（最速レンジ） | ||||
| トリガーディレイ | 約30 ns（最速レンジ） | ||||
| 最大掃引周波数 | 1 kHz（最速レンジ、OPEN FIXED時）、100 Hz（最速レンジ、NORMAL時） | ||||
| 動作モード | FOCUS / OPERATE | ||||
| トリガー入力 | 最大入力電圧 | ±5 V、50Ω | |||
| トリガーレベル | ±4 V 可変 | ||||
| モニタアウト信号 | LVCMOS 10 kΩ | ||||
| ゲートモード | NORMAL / GATE / OPEN FIXED | ||||
| ゲート方式 | 光電面ゲート | ||||
| ゲート最大繰り返し周波数 | 100 Hz | ||||
| ゲート消光比 | 1：105 以上 | ||||
| ゲート信号入力 | +3.5 V ～ +5.0 V、50 Ω、立ち上がり | ||||
| ゲートトリガー遅延時間 | 1 μs | ||||
| インターフェース | USB 2.0 | ||||
| 電源 | AC 100 V ～ AC 240 V、50 Hz/60Hz | ||||
| 消費電力 | 約100 VA | ||||

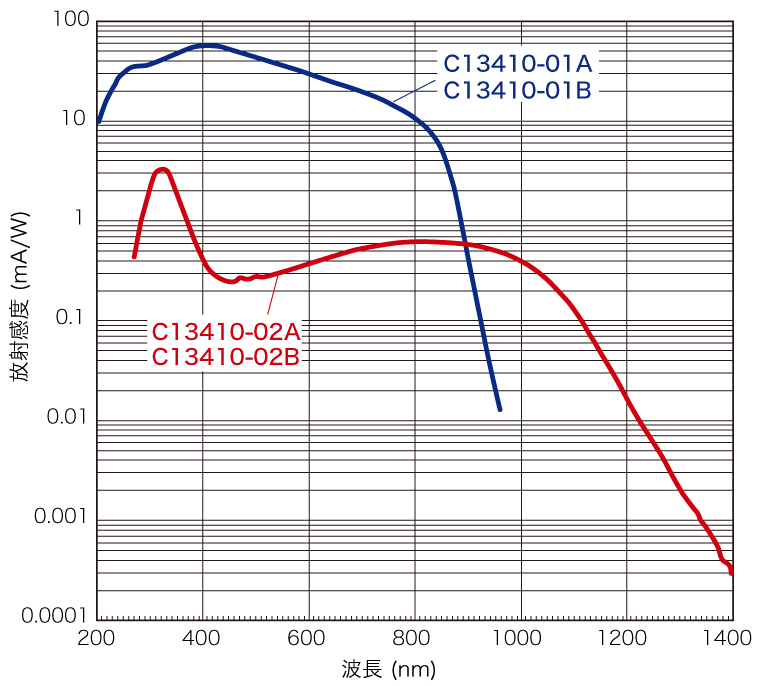

分光感度特性

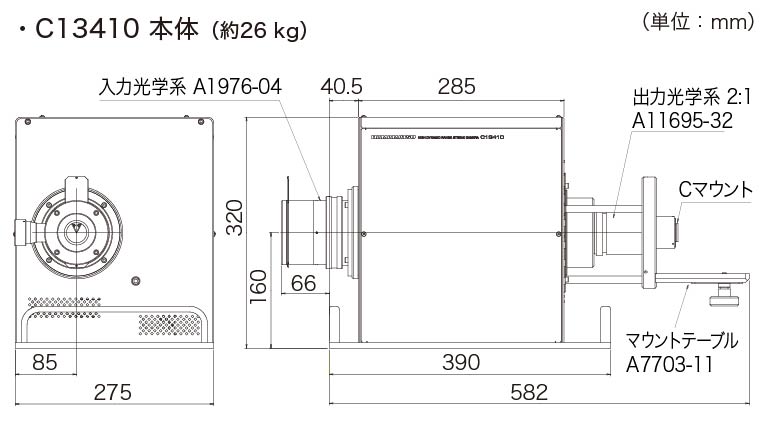

外形寸法図
関連情報
アプリケーション : 発光材料評価
発光材料評価 アプリケーションページでは、発光材料や発光デバイスの特性を評価するための手法や原理、測定機器、測定事例等を紹介しています。
