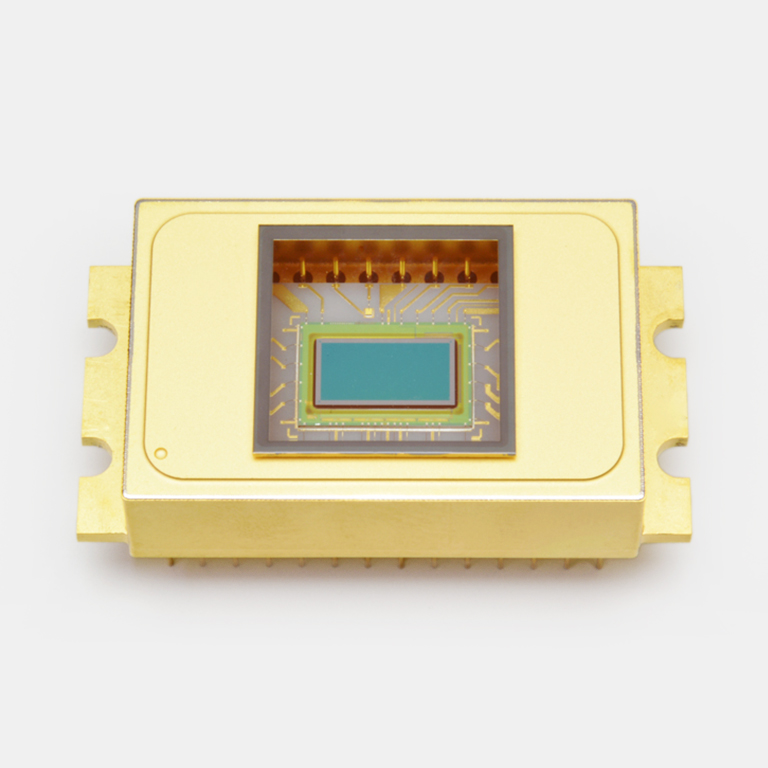

G13544-01は、CMOS読み出し回路 (ROIC: readout integrated circuit)と裏面入射型InGaAsフォトダイオードのハイブリッド構造を採用しています。1画素は1つのInGaAsフォトダイオードと1つのROICによって構成され、Inバンプにより電気的に接続されています。ROICにはタイミング発生器が内蔵されており、簡単なデジタル入力で、アナログビデオ出力、AD-TRIG出力が得られます。G13544-01は、192 × 96画素が50 μmピッチで配列されています。入射光はInGaAsフォトダイオードで光電変換された後、Inバンプを介してROICに入力されます。ROICで電圧変換して、シフトレジスタにより順次ビデオラインから出力されます。 なおG13544-01は、2段電子冷却型でハーメチック構造のメタルパッケージのため安定動作を実現しています。

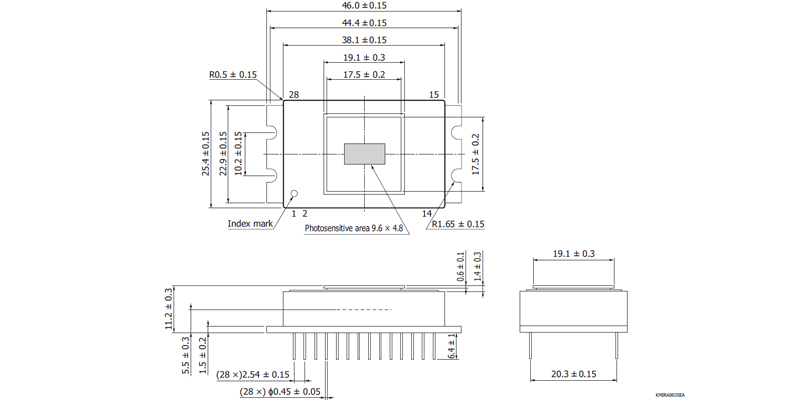

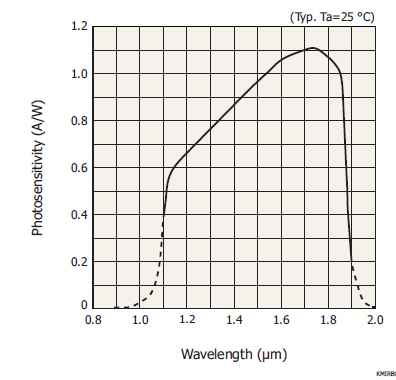

|最大感度波長 typ.||1750 nm|
|イメージサイズ||9.6 × 4.8 mm|
|画素サイズ||50 × 50 μm|
|総画素数||192 × 96 pixels|
|フレームレート max.||867 フレーム/s|
|測定条件||Ta=25 ℃, Td=-10℃, Vdd=5 V, Vb1=0 V, PD_bias=4.5 V|
