カウンティングユニット
C13182-01
高速光検出器用のフォトンカウンティングユニットです。高速アンプを組み合わせることにより、高速フォトンカウンタを構築できます。また、2つのカウンタ回路を持つダブルカウンタ方式を採用していますので、デッドタイムのない測定が可能です。
特長
Hybrid Photo-Detector (HPD)など高速光検出器のフォトンカウンタに最適
最大計数率: 5 x 107 s-1以上
USB経由で高速データ通信が可能
デッドタイムのないダブルカウンタ方式
サンプルソフトウェア付属
仕様
| 項目 | 内容 / 値 | |
|---|---|---|
| 入力部 | 入力信号数 | 1 |
| 信号入力レベル | +50 mV ～ +1.2 V | |
| 入力インピーダンス | 50 Ω | |
| ディスクリミネーションレベル | +5 mV ～ +1.2 V | |
| 最大計数率 | 5 × 107 s-1 以上（ランダムパルス、カウント損失 10 %） | |
| パルスペア分解能 | 2 ns | |
| カウンタ部 | カウンタ方式 | ダブルカウンタ方式 |
| 最大カウント容量 | 28/カウンタゲート（ゲート時間 1 μs ～ 5 μs） | |
| 216/カウンタゲート（ゲート時間 10 μs ～ 1 ms） | ||
| 224/カウンタゲート（ゲート時間 2 ms ～ 100 ms） | ||
| カウンタゲート部 | カウンタゲートモード | 内部カウンタゲートのみ |
| カウンタゲート時間 | 1 μs ～ 100 ms（1, 2, 5ステップ） | |
| トリガ部 | トリガ信号入力方式 | ソフトウェア、外部入力トリガ |
| 外部トリガ信号 | TTL負論理 | |
| FIFO容量 | 2048カウントデータ（ゲート時間 1 μs ～ 5 ms）
64カウントデータ（ゲート時間 10 ms ～ 100 ms）
|
|
| 対応OS | Windows® 10 Pro / 11 Pro | |
| インターフェース規格 | USB 2.0 | |
| 入力電源 | +7 V / 750 mA（付属のACアダプタより供給） | |
| 外形寸法（W × H × D） | 115.8 mm × 28 mm × 96 mm（突起物、ゴム足を除く） | |
| 質量 | 240 g（本体のみ） | |
| 動作周囲温度/湿度 | +5 ℃ ～ +45 ℃ / 80 %以下（結露なきこと） | |
| 保存温度/湿度 | 0 ℃ ～ +50 ℃ / 85 %以下（結露なきこと） | |
| CEマーキング | ･EN 61010-1/A1
･EN 61326-1
Emission Limits :CISPR 11 Group 1, Class B
Immunity requirements :Table 1
･EN IEC 63000
|
|
| ACアダプタ | 入力 | AC 100 V ～ AC 240 V |
| 出力 | +7 Ｖ/ 1.6 A | |
付属品: CD-ROM（デバイスドライバ、DLL、サンプルソフトウェア、取扱説明書等）、USBケーブル、ACアダプタ、SMA-Pコネクタ付信号ケーブル、ディスクリレベルモニタ用端子付ケーブル

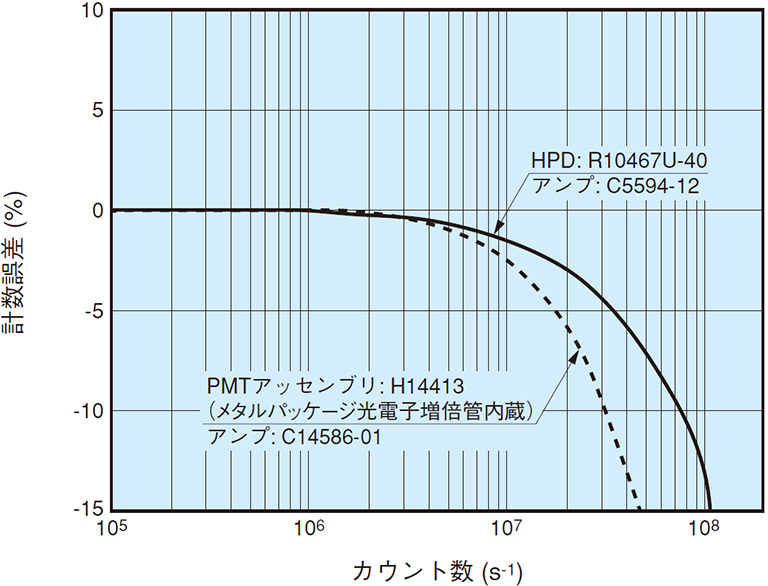

特性（カウントリニアリティ）

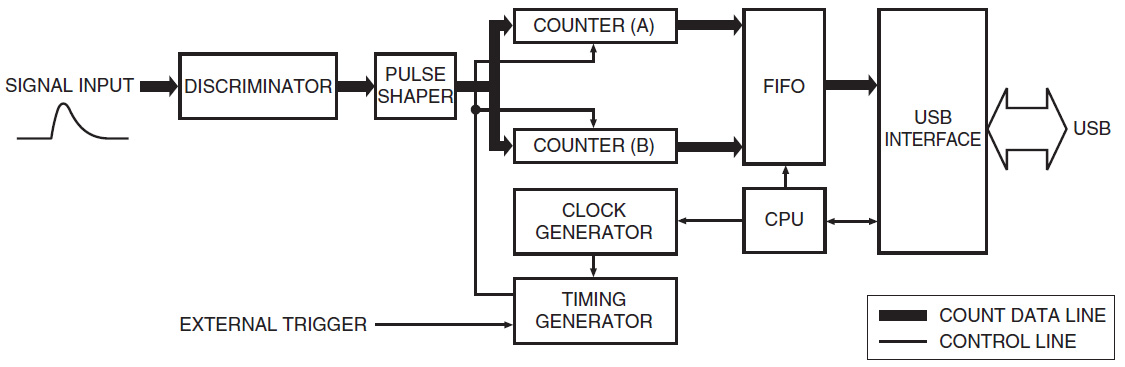

内部構成図

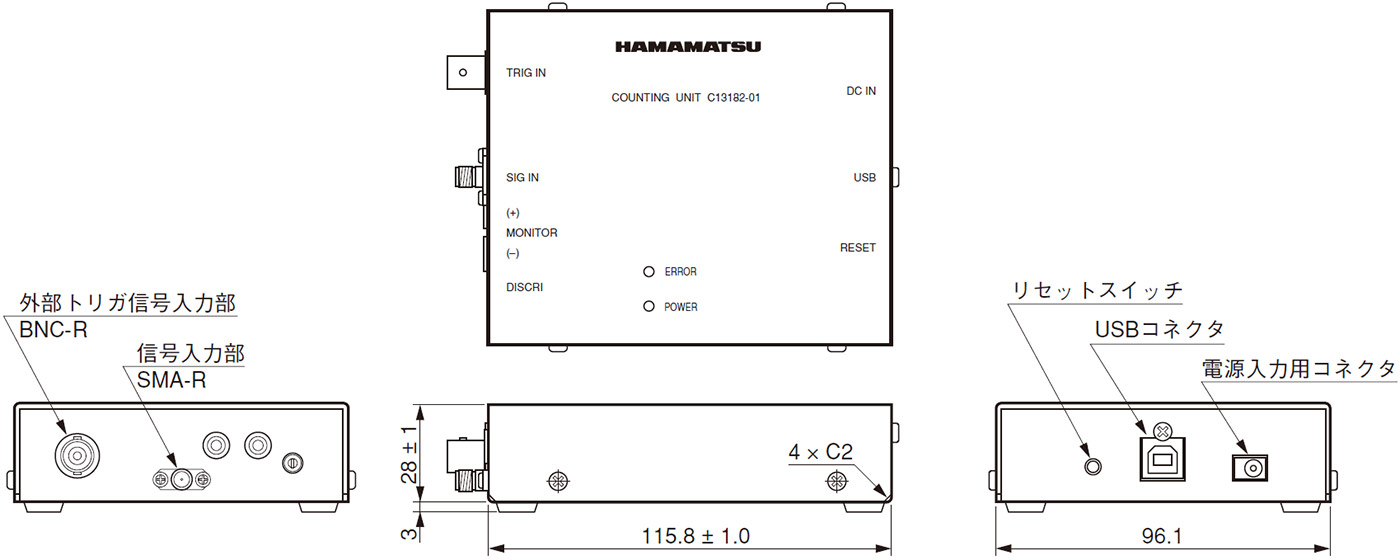

外形寸法図（単位：mm）
