Circuit / pattern design

This process designs a pattern by combining circuits according to specifications.

Circuit or pattern design is a foundational step in semiconductor manufacturing, where engineers create the layout of electronic circuits on a semiconductor wafer. This process involves translating a circuit's schematic diagram into a physical design that can be implemented on the silicon substrate. Engineers use specialized electronic design automation (EDA) tools to define the placement and interconnection of components, such as transistors, resistors, and capacitors, with the goal of achieving the desired functionality and performance. The intricacies of the design must consider factors like power consumption, signal integrity, and heat dissipation to ensure the optimal operation of the semiconductor device. During the circuit design phase, engineers employ various techniques such as standard cell libraries and custom design approaches. Standard cells, pre-designed and characterized functional blocks, are combined to create the overall circuit layout efficiently. On the other hand, custom design involves creating unique transistor-level layouts for specific components, providing more flexibility but often requiring more time and effort. Once the circuit design is complete, it serves as a blueprint for subsequent manufacturing processes, including photolithography, deposition, and etching, guiding the creation of the intricate patterns that form the basis of semiconductor devices.

Identification of fault location

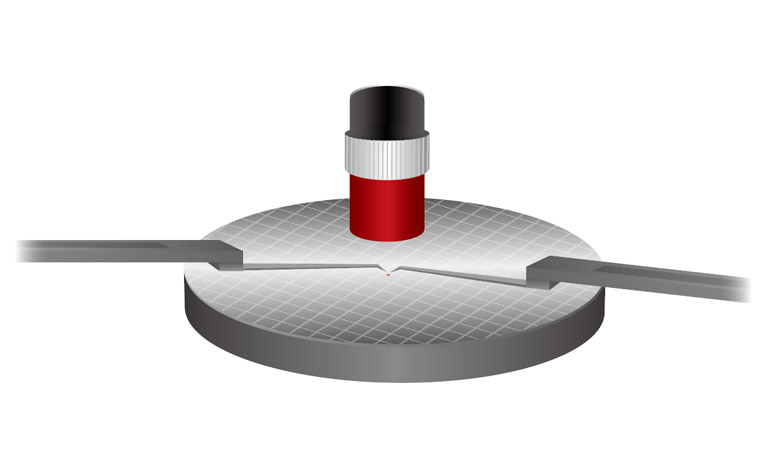

Optical transistor probing techniques play a pivotal role in pinpointing defective components within electronic devices. By harnessing the power of light, these techniques enable the detection of defective locations through subtle cues such as faint light emissions and heat signatures. The process involves subjecting the device under test to optical probing, where optical sensors, possibly integrated into the circuit or positioned in proximity to the device, capture the response of the components to the optical stimulation. Through careful analysis of the faint light and heat signals, fault locations can be precisely identified, allowing for a comprehensive understanding of the defective elements. Once defective locations are identified, the results of this optical analysis can be fed back into the design process. This iterative feedback loop facilitates defect control and yield improvement by allowing designers to make informed modifications to the circuit layout or component specifications.

Recommended product

c10506-07-06 product photo

This high-resolution emission microscope captures faint light emission and heat generated by failures inside semiconductor devices and then identifies failure locations.
